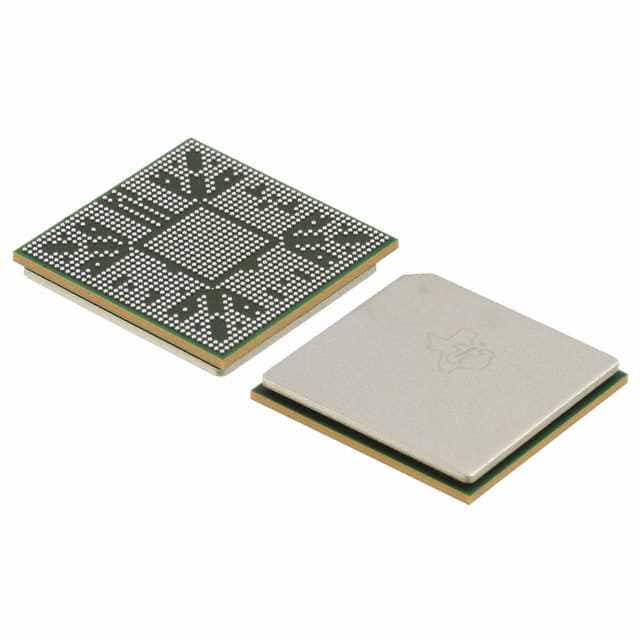

TMS320DM8168CCYG4
IC DGTL MEDIA PROCESSR 1031FCBGAManufacturer: Texas Instruments
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More
Texas Instruments TMS320DM8168CCYG4, a DaVinci™ DM81x Video SOC, is a Digital Media System-on-Chip designed for advanced video processing. This device features a 1.125GHz DSP core and a 1.35GHz ARM® processor, enabling high-performance multimedia applications. It offers extensive connectivity options including EBI/EMI, Ethernet, I2C, McASP, McBSP, PCI, Serial ATA, SD/SDIO, SPI, UART, and USB interfaces. The TMS320DM8168CCYG4 includes 1.5MB of on-chip RAM and 48kB of ROM, with core voltage at 1.00V and I/O voltages at 1.5V, 1.8V, and 3.3V. Packaged in a 1031-FCBGA (25x25) for surface mounting, it operates within a junction temperature range of 0°C to 95°C. This component is utilized in industries such as digital signage, medical imaging, and industrial automation.
Additional Information
Series: DM81x Video SOC, DaVinci™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 1031-BFBGA, FCBGA |
| Mounting Type | Surface Mount |
| Interface | EBI/EMI, Ethernet, I2C, McASP, McBSP, PCI, Serial ATA, SD/SDIO, SPI, UART, USB |
| Type | Digital Media System-on-Chip (DMSoC) |
| Operating Temperature | 0°C ~ 95°C (TJ) |
| Non-Volatile Memory | ROM (48kB) |
| On-Chip RAM | 1.5MB |
| Voltage - I/O | 1.5V, 1.8V, 3.3V |
| Voltage - Core | 1.00V |
| Clock Rate | 1.125GHz DSP, 1.35GHz ARM® |
| Supplier Device Package | 1031-FCBGA (25x25) |
Request a Quote
