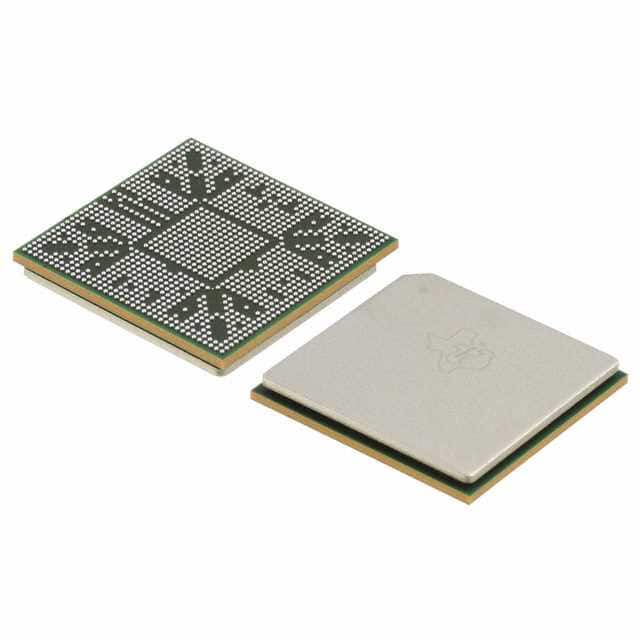

TMS320DM8167SCYG
IC DGTL MEDIA PROCESSR 1031FCBGAManufacturer: Texas Instruments
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More
Texas Instruments TMS320DM8167SCYG, a DaVinci™ DM81x Video SOC, is a Digital Media System-on-Chip (DMSoC) featuring a powerful architecture for demanding multimedia applications. This component integrates an 800MHz DSP core and a 1.0GHz ARM® processor, enabling high-performance signal processing and control. The TMS320DM8167SCYG offers extensive peripheral support, including EBI/EMI, Ethernet, I2C, McASP, McBSP, PCI, Serial ATA, SD/SDIO, SPI, UART, and USB interfaces, facilitating seamless integration into complex system designs. With 1.5MB of on-chip RAM and 48kB of ROM, it provides ample resources for data handling and program execution. The device operates within a junction temperature range of 0°C to 95°C and utilizes a 1.00V core voltage with I/O voltages of 1.5V, 1.8V, and 3.3V. Packaged in a 1031-FCBGA (25x25) for surface mounting, this component is widely employed in the industrial automation, medical imaging, and video surveillance sectors.
Additional Information
Series: DM81x Video SOC, DaVinci™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 1031-BFBGA, FCBGA |
| Mounting Type | Surface Mount |
| Interface | EBI/EMI, Ethernet, I2C, McASP, McBSP, PCI, Serial ATA, SD/SDIO, SPI, UART, USB |
| Type | Digital Media System-on-Chip (DMSoC) |
| Operating Temperature | 0°C ~ 95°C (TJ) |
| Non-Volatile Memory | ROM (48kB) |
| On-Chip RAM | 1.5MB |
| Voltage - I/O | 1.5V, 1.8V, 3.3V |
| Voltage - Core | 1.00V |
| Clock Rate | 800MHz DSP, 1.0GHz ARM® |
| Supplier Device Package | 1031-FCBGA (25x25) |
