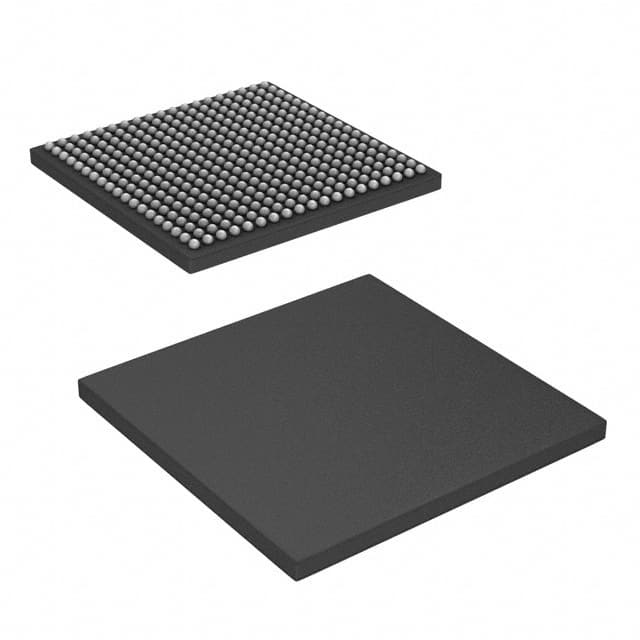

TMS320DM6446AZWTA
IC DIGITAL MEDIA SOC 361-BGAManufacturer: Texas Instruments
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More
Texas Instruments TMS320DM6446AZWTA is a DaVinci™ Digital Media System-on-Chip (DMSoC) designed for high-performance digital media processing. This device integrates a 513MHz C64x+ DSP core with a 256.5MHz ARM926EJ-S processor, offering a powerful dual-core architecture. It features 160kB of on-chip RAM and 8kB of ROM for efficient data handling.
The TMS320DM6446AZWTA supports a comprehensive set of interfaces including ASP, EBI/EMI, Host Interface, I2C, SPI, UART, and USB, facilitating flexible system integration. With a core voltage of 1.20V and I/O voltages of 1.8V and 3.3V, it operates within an extended temperature range of -40°C to 105°C (TC). The component is supplied in a 361-NFBGA (16x16) package, suitable for surface mount applications. This DMSoC finds application in video conferencing, surveillance, industrial automation, and digital signage.
Additional Information
Series: TMS320DM644x, DaVinci™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 361-LFBGA |
| Mounting Type | Surface Mount |
| Interface | ASP, EBI/EMI, Host Interface, I2C, SPI, UART, USB |
| Type | Digital Media System-on-Chip (DMSoC) |
| Operating Temperature | -40°C ~ 105°C (TC) |
| Non-Volatile Memory | ROM (8kB) |
| On-Chip RAM | 160kB |
| Voltage - I/O | 1.8V, 3.3V |
| Voltage - Core | 1.20V |
| Clock Rate | 513MHz DSP, 256.5MHz ARM® |
| Supplier Device Package | 361-NFBGA (16x16) |
