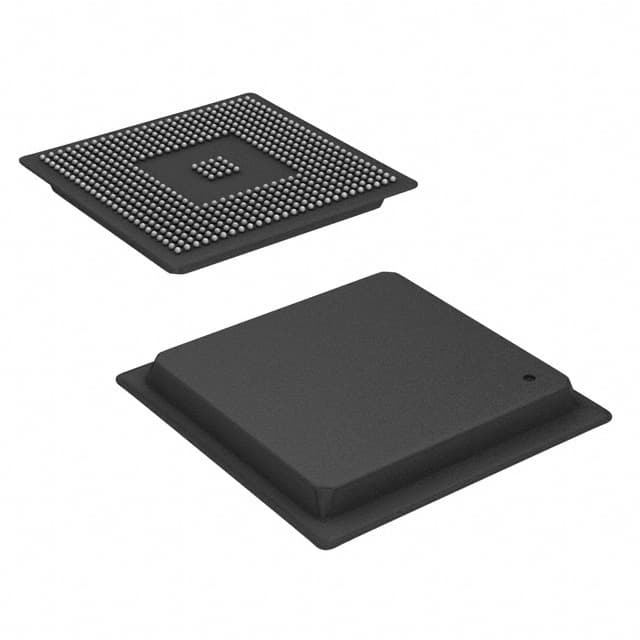

TMS320DM643AZDK5
IC FIXED-POINT DSP 548-FCBGAManufacturer: Texas Instruments
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More
Texas Instruments TMS320DM643AZDK5, a member of the TMS320DM64x DaVinci™ series, is a fixed-point digital signal processor. This component features a 500MHz clock rate and 288kB of on-chip RAM. Its extensive interface capabilities include Host Interface, I2C, McASP, and McBSP, facilitating robust system integration. The device utilizes a 548-FCBGA (23x23) package for surface mounting and operates with a core voltage of 1.40V and an I/O voltage of 3.30V. Its operating temperature range is 0°C to 90°C (TC). This processor is well-suited for demanding applications across industrial automation, video surveillance, and medical imaging sectors, requiring high-performance signal processing. Non-volatile memory is externally managed.
Additional Information
Series: TMS320DM64x, DaVinci™RoHS Status: RoHS non-compliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 548-BFBGA, FCBGA |
| Mounting Type | Surface Mount |
| Interface | Host Interface, I2C, McASP, McBSP |
| Type | Fixed Point |
| Operating Temperature | 0°C ~ 90°C (TC) |
| Non-Volatile Memory | External |
| On-Chip RAM | 288kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.40V |
| Clock Rate | 500MHz |
| Supplier Device Package | 548-FCBGA (23x23) |
