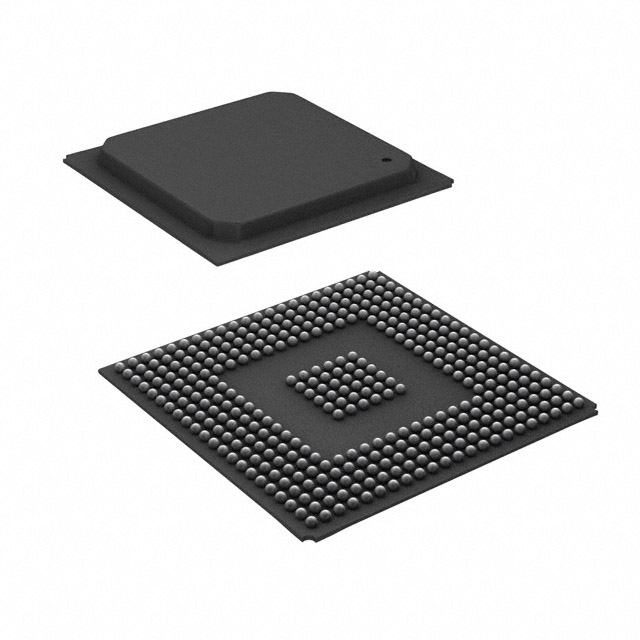

TMS320DM6435ZWTQ4
IC DGTL MEDIA PROCESSOR 361-BGAManufacturer: Texas Instruments
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More
Texas Instruments TMS320DM6435ZWTQ4, a DaVinci™ series digital media processor, offers robust performance for demanding applications. This fixed-point DSP, housed in a 361-NFBGA (16x16) package, operates at a 400MHz clock rate. It features 240kB of on-chip RAM and 64kB of ROM. Connectivity is provided through HPI, I2C, McASP, McBSP, UART, and a 10/100 Ethernet MAC interface. Core voltages are 1.05V and 1.20V, with I/O voltages at 1.8V and 3.3V. The device is designed for surface mounting and operates across an extended temperature range of -40°C to 125°C (TJ). Its capabilities are leveraged in industries such as industrial automation, medical imaging, and digital audio/video processing.
Additional Information
Series: TMS320DM643x, DaVinci™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 361-LFBGA |
| Mounting Type | Surface Mount |
| Interface | HPI, I2C, McASP, McBSP, UART, 10/100 Ethernet MAC |
| Type | Fixed Point |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Non-Volatile Memory | ROM (64kB) |
| On-Chip RAM | 240kB |
| Voltage - I/O | 1.8V, 3.3V |
| Voltage - Core | 1.05V, 1.20V |
| Clock Rate | 400MHz |
| Supplier Device Package | 361-NFBGA (16x16) |
