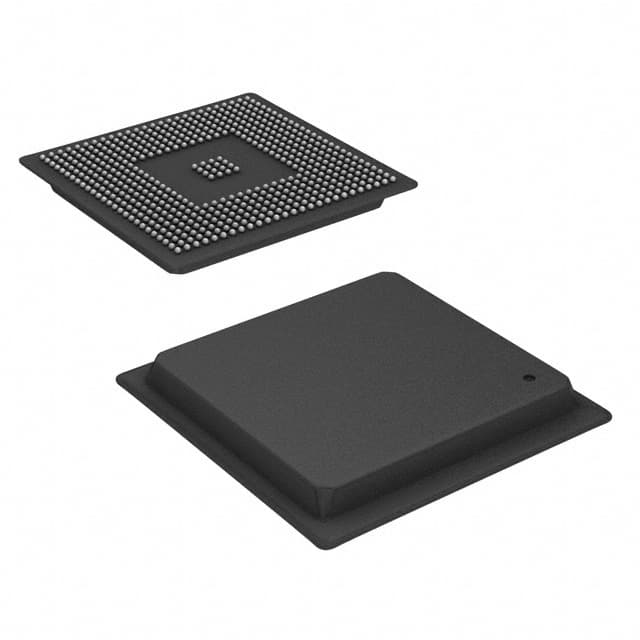

TMS320DM642AZDKA5
IC FIXED-POINT DSP 548-FCBGAManufacturer: Texas Instruments
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More
Texas Instruments TMS320DM642AZDKA5 is a fixed-point Digital Signal Processor from the TMS320DM64x, DaVinci™ series. This 548-FCBGA packaged component operates at a 500MHz clock rate, featuring a 1.20V core voltage and 3.30V I/O voltage. It provides 160kB of on-chip RAM and requires external non-volatile memory. Key interfaces include Host Interface, I2C, McASP, McBSP, and PCI, facilitating integration into complex systems. Designed for surface mounting, this component is built to withstand operating temperatures from -40°C to 105°C (TC). Applications for this device are found in video infrastructure, industrial automation, and medical imaging.
Additional Information
Series: TMS320DM64x, DaVinci™RoHS Status: RoHS non-compliantManufacturer Lead Time: 28 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 548-BFBGA, FCBGA |
| Mounting Type | Surface Mount |
| Interface | Host Interface, I2C, McASP, McBSP, PCI |
| Type | Fixed Point |
| Operating Temperature | -40°C ~ 105°C (TC) |
| Non-Volatile Memory | External |
| On-Chip RAM | 160kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.20V |
| Clock Rate | 500MHz |
| Supplier Device Package | 548-FCBGA (23x23) |
