TMS320C80GGP60
IC MIMD DSP 352-BGAManufacturer: Texas Instruments
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More
Texas Instruments TMS320C8x series, part number TMS320C80GGP60, is a 60MHz MIMD DSP with a 352-BGA package. This floating-point digital signal processor offers 98kB of on-chip RAM and requires external non-volatile memory. Designed for surface mount applications, it features a parallel interface and operates within a temperature range of 0°C to 85°C. The TMS320C80GGP60 is suitable for applications in telecommunications, industrial automation, and imaging systems. It operates at a core voltage of 3.30V and an I/O voltage of 3.30V.
Additional Information
Series: TMS320C8xRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 352-LBGA |
| Mounting Type | Surface Mount |
| Interface | Parallel |
| Type | Floating Point |
| Operating Temperature | 0°C ~ 85°C (TC) |
| Non-Volatile Memory | External |
| On-Chip RAM | 98kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 3.30V |
| Clock Rate | 60MHz |
| Supplier Device Package | 352-BGA (35x35) |
Request a Quote
Clients Also Buy
TMS320C82GGP60
IC MIMD DSP 352-BGA

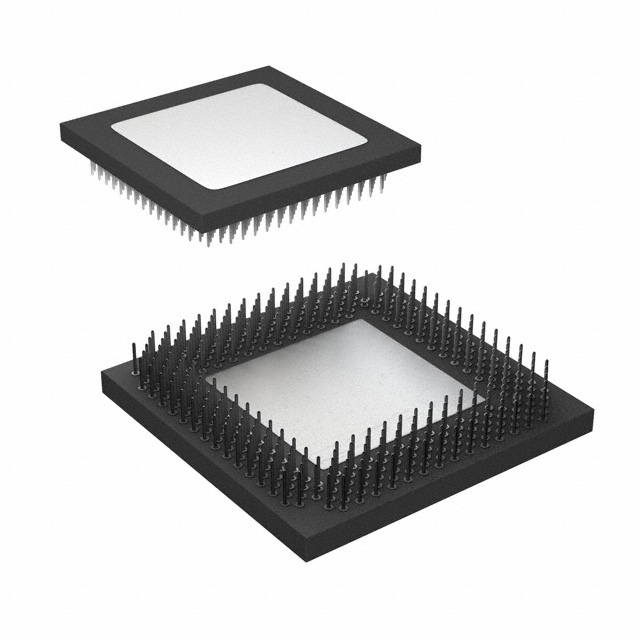

TMS320C80GF60
