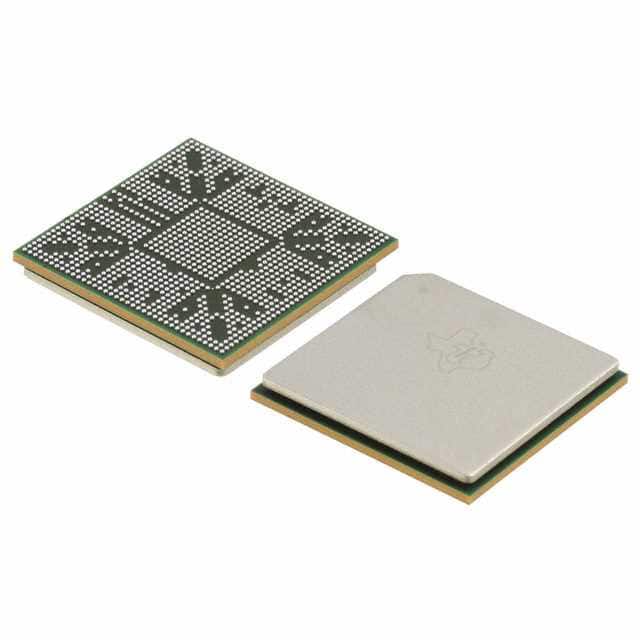

TMS320C6A8168ACYG2
IC DSP/ARM PROCESSOR 1031FCBGAManufacturer: Texas Instruments
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More
Texas Instruments TMS320C6A8168ACYG2 is a high-performance System-on-Chip (SoC) integrating a C6EZ48 DSP core and an ARM926EJ-S™ processor core. This device operates at clock speeds of 1GHz and 1.2GHz, featuring 1.504MB of on-chip RAM and 48kB of ROM. Connectivity options include EBI/EMI, Ethernet MAC, I2C, McASP, McBSP, SPI, UART, and USB interfaces. The TMS320C6A8168ACYG2 is housed in a 1031-FCBGA (25x25) package, requiring surface mounting. It supports core voltage of 1.00V and I/O voltages of 1.5V, 1.8V, and 3.3V, with an operating temperature range of 0°C to 95°C (TJ). This component is widely utilized in industrial automation, medical imaging, and video surveillance applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 1031-BFBGA, FCBGA |
| Mounting Type | Surface Mount |
| Interface | EBI/EMI, Ethernet MAC, I2C, McASP, McBSP, SPI, UART, USB |
| Type | DSP+ARM® |
| Operating Temperature | 0°C ~ 95°C (TJ) |
| Non-Volatile Memory | ROM (48kB) |
| On-Chip RAM | 1.504MB |
| Voltage - I/O | 1.5V, 1.8V, 3.3V |
| Voltage - Core | 1.00V |
| Clock Rate | 1GHz, 1.2GHz |
| Supplier Device Package | 1031-FCBGA (25x25) |
