TMS320C6414TBZLZ8
IC FIXED-POINT DSP 532-FCBGAManufacturer: Texas Instruments
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More
Texas Instruments TMS320C6414TBZLZ8 is a high-performance fixed-point Digital Signal Processor (DSP) from the TMS320C6414T/15T/16T series. This device features an 850MHz clock rate and 1.03MB of on-chip RAM, supporting applications demanding significant processing power. Key interfaces include Host Interface, McBSP, PCI, and UTOPIA, facilitating robust system integration.

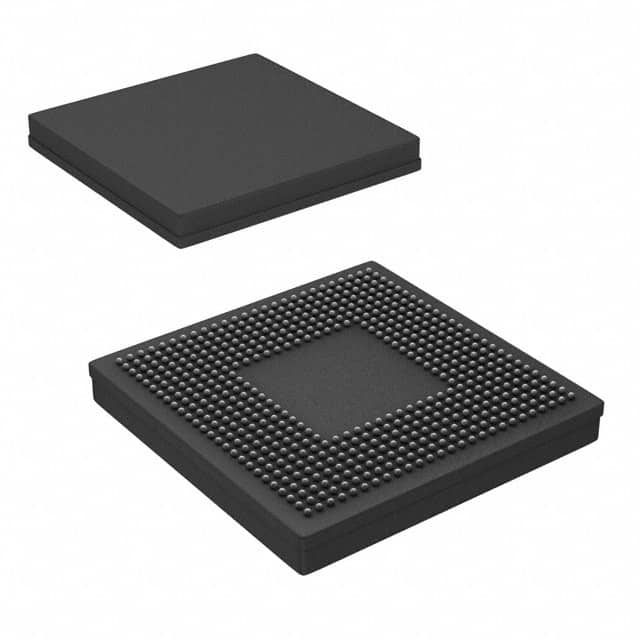

Designed for surface mount applications, the TMS320C6414TBZLZ8 utilizes a 532-FCBGA (23x23) package. It operates with a core voltage of 1.20V and I/O voltage of 3.30V, within a temperature range of 0°C to 90°C (TC). Non-volatile memory is managed externally. This DSP is prevalent in telecommunications, industrial automation, and audio processing systems.
Additional Information
Series: TMS320C6414T/15T/16TRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 532-BFBGA, FCBGA |
| Mounting Type | Surface Mount |
| Interface | Host Interface, McBSP, PCI, UTOPIA |
| Type | Fixed Point |
| Operating Temperature | 0°C ~ 90°C (TC) |
| Non-Volatile Memory | External |
| On-Chip RAM | 1.03MB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.20V |
| Clock Rate | 850MHz |
| Supplier Device Package | 532-FCBGA (23x23) |
Request a Quote
