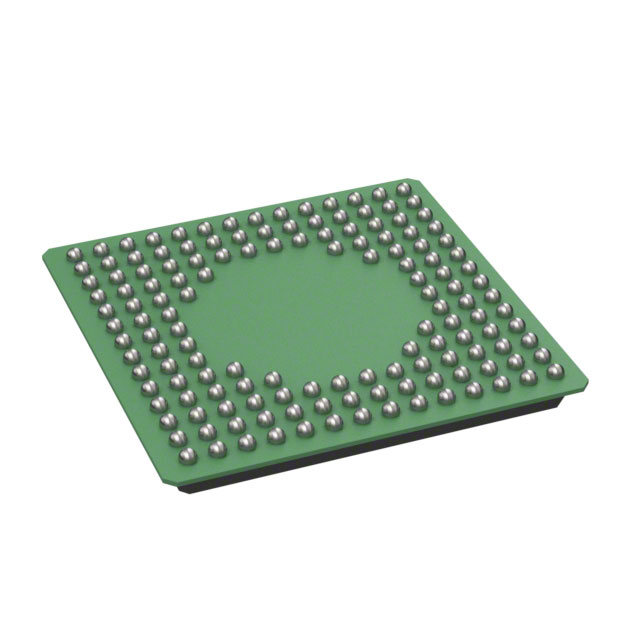

TMS320C5532NZHH10
IC DSP FIXED POINT BGAManufacturer: Texas Instruments
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More
Texas Instruments TMS320C55x series DSP, part number TMS320C5532NZHH10, is a fixed-point digital signal processor. This BGA packaged component operates at a 100MHz clock rate and features 64kb of on-chip RAM and 128kB of ROM. Connectivity is supported through multiple interfaces including I2C, I2S, MMC/SD, SPI, and UART. Core voltage is 1.30V, with I/O voltage flexibility ranging from 1.8V to 3.3V. The TMS320C5532NZHH10 is designed for surface mounting and comes in a 144-LFBGA package. Its robust feature set makes it suitable for applications in areas such as audio processing, industrial control, and consumer electronics. The operating temperature range for this device is -10°C to 70°C (TC).
Additional Information
Series: TMS320C55xRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-LFBGA |
| Mounting Type | Surface Mount |
| Interface | I2C, I2S, MMC/SD, SPI, UART |
| Type | Fixed Point |
| Operating Temperature | -10°C ~ 70°C (TC) |
| Non-Volatile Memory | ROM (128kB) |
| On-Chip RAM | 64kb |
| Voltage - I/O | 1.8V, 2.5V, 2.75V, 3.3V |
| Voltage - Core | 1.30V |
| Clock Rate | 100MHz |
| Supplier Device Package | 144-BGA MICROSTAR (12x12) |
