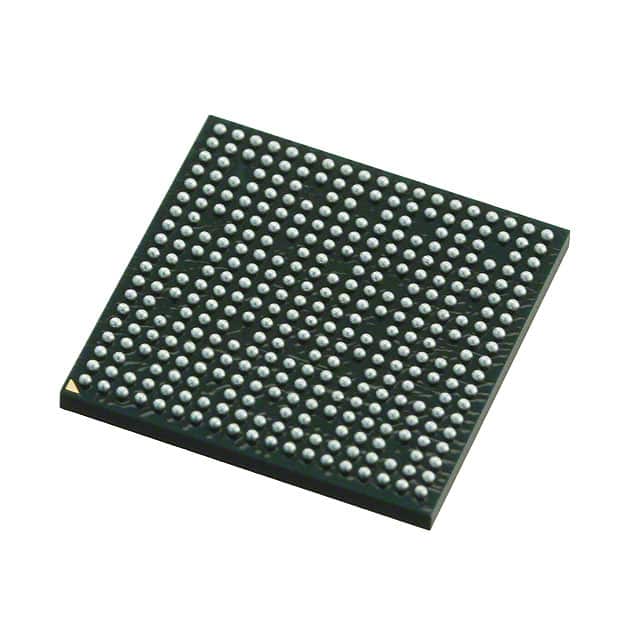

DM368ZCEZ
IC SOC DIGITAL MEDIA 338NFBGAManufacturer: Texas Instruments
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More
Texas Instruments TMS320DM3x, DaVinci™ DM368ZCEZ is a Digital Media System-on-Chip (DMSoC) designed for advanced multimedia applications. This device integrates a powerful DSP core with dedicated hardware accelerators for video and audio processing, enabling efficient handling of complex media streams. Featuring a 432MHz clock rate, it offers robust processing capabilities for demanding tasks. The DM368ZCEZ provides a comprehensive suite of interfaces including EBI/EMI, Ethernet, I2C, McBSP, SPI, UART, and USB, facilitating seamless connectivity and system integration. On-chip resources include 56kB of RAM and 16kB of ROM for essential operations. Packaged in a 338-LFBGA (338-BGA, 13x13) for surface mounting, this component operates within a temperature range of 0°C to 85°C (TC) with core voltage at 1.20V and I/O voltage support at 1.8V and 3.3V. This DMSoC is commonly utilized in consumer electronics, industrial automation, and professional audio/video equipment.
Additional Information
Series: TMS320DM3x, DaVinci™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 338-LFBGA |
| Mounting Type | Surface Mount |
| Interface | EBI/EMI, Ethernet, I2C, McBSP, SPI, UART, USB |
| Type | Digital Media System-on-Chip (DMSoC) |
| Operating Temperature | 0°C ~ 85°C (TC) |
| Non-Volatile Memory | ROM (16kB) |
| On-Chip RAM | 56kB |
| Voltage - I/O | 1.8V, 3.3V |
| Voltage - Core | 1.20V |
| Clock Rate | 432MHz |
| Supplier Device Package | 338-BGA (13x13) |
