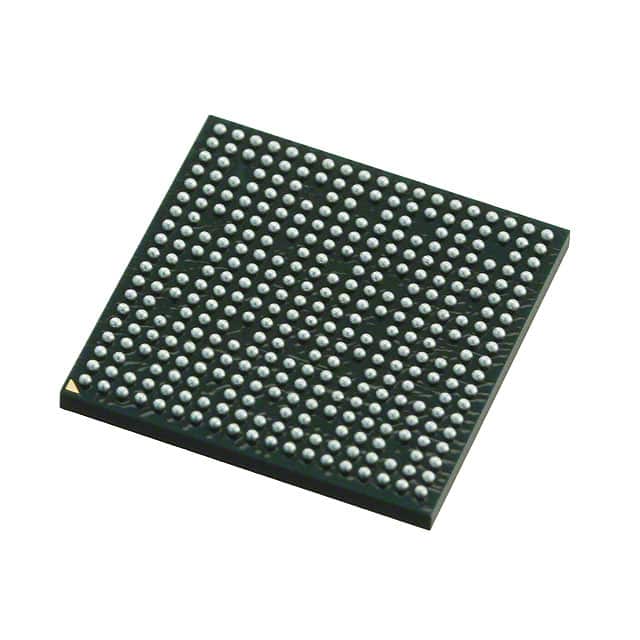

DM368ZCEDZ
IC SOC DIGITAL MEDIA 338NFBGAManufacturer: Texas Instruments
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More
Texas Instruments TMS320DM3x, DaVinci™ DM368ZCEDZ is a Digital Media System-on-Chip (DMSoC) featuring a 432MHz clock rate. This device integrates a powerful digital media processor with a comprehensive suite of peripherals essential for advanced multimedia applications. Key interfaces include EBI/EMI, Ethernet, I2C, McBSP, SPI, UART, and USB, facilitating robust connectivity. The DM368ZCEDZ provides 56kB of on-chip RAM and 16kB of ROM for embedded code. Designed for surface mounting, it is supplied in a 338-LFBGA package (338-BGA with dimensions 13x13mm). Operating within a temperature range of -40°C to 85°C (TC), it utilizes core voltage of 1.20V and I/O voltages of 1.8V and 3.3V. This component is extensively utilized in industrial automation, video surveillance, and digital signage applications.
Additional Information
Series: TMS320DM3x, DaVinci™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 338-LFBGA |
| Mounting Type | Surface Mount |
| Interface | EBI/EMI, Ethernet, I2C, McBSP, SPI, UART, USB |
| Type | Digital Media System-on-Chip (DMSoC) |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Non-Volatile Memory | ROM (16kB) |
| On-Chip RAM | 56kB |
| Voltage - I/O | 1.8V, 3.3V |
| Voltage - Core | 1.20V |
| Clock Rate | 432MHz |
| Supplier Device Package | 338-BGA (13x13) |
