66AK2H12BAAW24
IC DSP ARM SOC 1517FCBGAManufacturer: Texas Instruments
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More

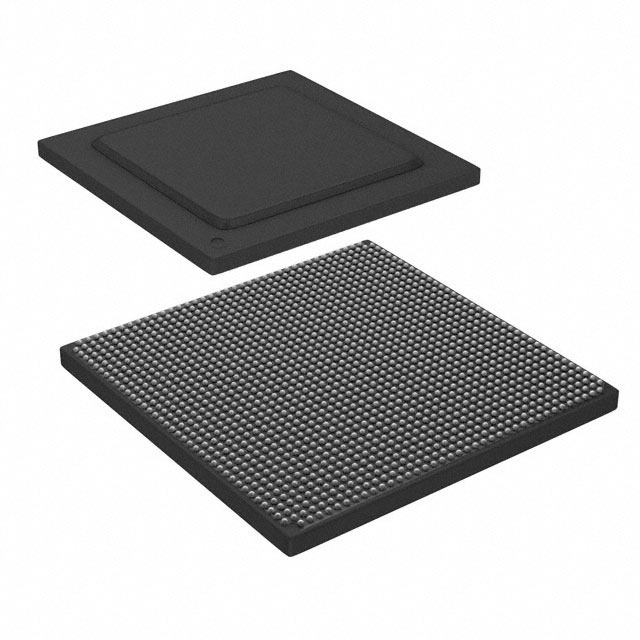

Texas Instruments 66AK2H12BAAW24, a KeyStone Multicore DSP+ARM® SoC, features a 1.2GHz DSP core and a 1.4GHz ARM® Cortex®-A15 core. This device offers 12.75MB of on-chip RAM and 384kB of ROM. Connectivity is extensive, including EBI/EMI, Ethernet, DMA, I2C, Serial RapidIO, SPI, UART/USART, and USB 3.0 interfaces. The 66AK2H12BAAW24 is housed in a 1517-FCBGA package and supports variable core voltages with I/O voltages at 0.85V, 1.0V, 1.35V, 1.5V, 1.8V, and 3.3V. Operating within a temperature range of 0°C to 85°C (TC), this device is suitable for applications in telecommunications, industrial automation, and high-performance computing.
Additional Information
Series: 66AK2Hx KeyStone MulticoreRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 1517-BBGA, FCBGA |
| Mounting Type | Surface Mount |
| Interface | EBI/EMI, Ethernet, DMA, I2C, Serial RapidIO, SPI, UART/USART, USB 3.0 |
| Type | DSP+ARM® |
| Operating Temperature | 0°C ~ 85°C (TC) |
| Non-Volatile Memory | ROM (384kB) |
| On-Chip RAM | 12.75MB |
| Voltage - I/O | 0.85V, 1.0V, 1.35V, 1.5V, 1.8V, 3.3V |
| Voltage - Core | Variable |
| Clock Rate | 1.2GHz DSP, 1.4GHz ARM® |
| Supplier Device Package | 1517-FCBGA (40x40) |
