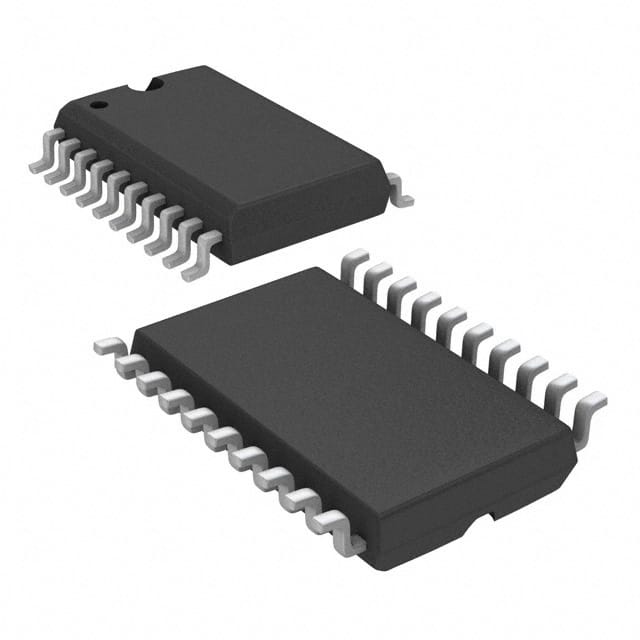

SN75LBC174DWR
IC DRIVER 4/0 20SOICManufacturer: Texas Instruments
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
Texas Instruments SN75LBC174DWR is a quad RS-422/RS-485 driver designed for robust serial communication. This electronic component features four independent drivers with a data rate of up to 30Mbps, making it suitable for demanding industrial and commercial applications. The SN75LBC174DWR operates from a 4.75V to 5.25V supply and is housed in a 20-SOIC package for surface mounting. Its 0°C to 70°C operating temperature range ensures reliable performance in various environments. These devices are commonly employed in industrial automation, networking equipment, and telecommunications systems where high-speed, differential signaling is critical. The 20-SOIC (0.295", 7.50mm Width) package is supplied in tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Type | Driver |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Number of Drivers/Receivers | 4/0 |
| Data Rate | 30Mbps |
| Protocol | RS422, RS485 |
| Supplier Device Package | 20-SOIC |
| Duplex | - |
