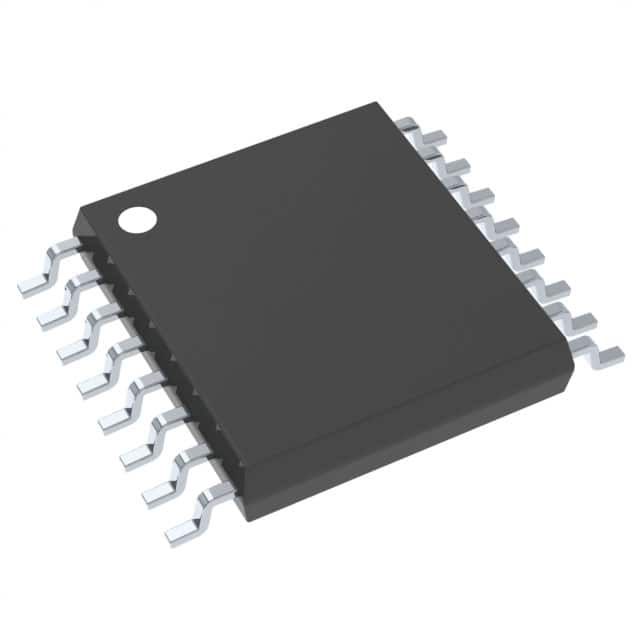

SN75C3221PW
IC TRANSCEIVER FULL 1/1 16TSSOPManufacturer: Texas Instruments
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
Texas Instruments SN75C3221PW is a full RS-232 transceiver featuring a 1/1 driver/receiver configuration. This component is designed for robust serial communication, supporting data rates up to 1Mbps. Operating within a wide voltage range of 3V to 5.5V, the SN75C3221PW offers a reliable 500mV of receiver hysteresis for improved noise immunity. Its 16-TSSOP package, with a width of 4.40mm, is ideal for surface-mount applications requiring efficient board space utilization. This transceiver is commonly employed in industrial automation, telecommunications infrastructure, and portable electronics where reliable RS-232 interfacing is critical. The device is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Type | Transceiver |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3V ~ 5.5V |
| Number of Drivers/Receivers | 1/1 |
| Data Rate | 1Mbps |
| Protocol | RS232 |
| Supplier Device Package | 16-TSSOP |
| Receiver Hysteresis | 500 mV |
| Duplex | Full |
