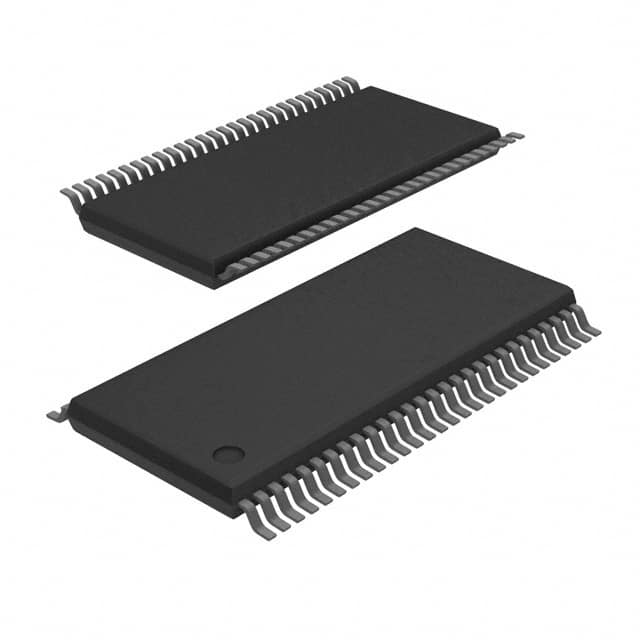

SN75976A2DGGG4
IC TRANSCEIVER HALF 9/9 56TSSOPManufacturer: Texas Instruments
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
Texas Instruments SN75976A2DGGG4 is a 9/9 transceiver designed for RS422 and RS485 communication protocols. This half-duplex device operates within a voltage supply range of 4.5V to 5.5V and features receiver hysteresis of 45 mV. The SN75976A2DGGG4 is housed in a 56-TSSOP package, suitable for surface mount applications. With its robust design and support for industry-standard serial communication, this component is utilized in various industrial automation and communication systems. The operating temperature range is 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 56-TFSOP (0.240"", 6.10mm Width) |
| Mounting Type | Surface Mount |
| Type | Transceiver |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Number of Drivers/Receivers | 9/9 |
| Data Rate | - |
| Protocol | RS422, RS485 |
| Supplier Device Package | 56-TSSOP |
| Receiver Hysteresis | 45 mV |
| Duplex | Half |
