SN55LBC180RSAT
IC TRANSCEIVER FULL 1/1 16QFNManufacturer: Texas Instruments
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More

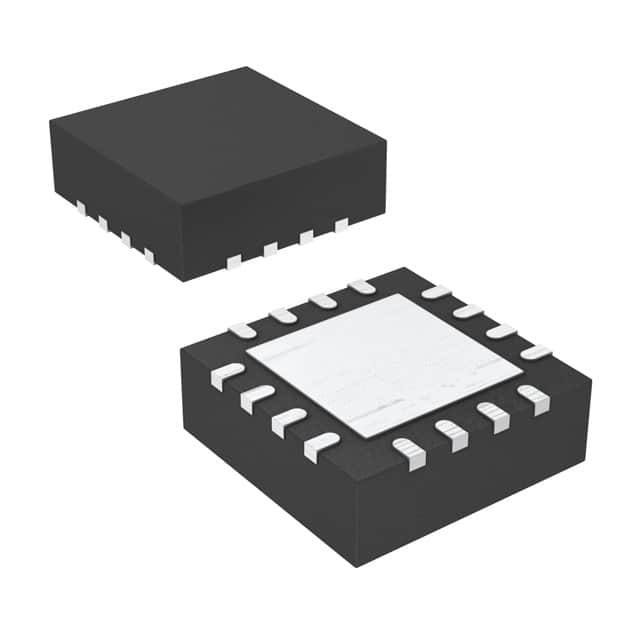

Texas Instruments SN55LBC180RSAT is a high-speed, full-duplex transceiver supporting RS422 and RS485 serial communication protocols. This 1/1 driver/receiver configuration is housed in a compact 16-QFN (4x4mm) surface-mount package, supplied on tape and reel. Designed for robust operation across a wide temperature range of -55°C to 125°C, it requires a supply voltage between 4.75V and 5.25V. The device's 16-VQFN Exposed Pad package provides enhanced thermal performance. This transceiver is commonly utilized in industrial automation, telecommunications infrastructure, and robust data acquisition systems where reliable, long-distance serial communication is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Transceiver |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Number of Drivers/Receivers | 1/1 |
| Data Rate | - |
| Protocol | RS422, RS485 |
| Supplier Device Package | 16-QFN (4x4) |
| Duplex | Full |
