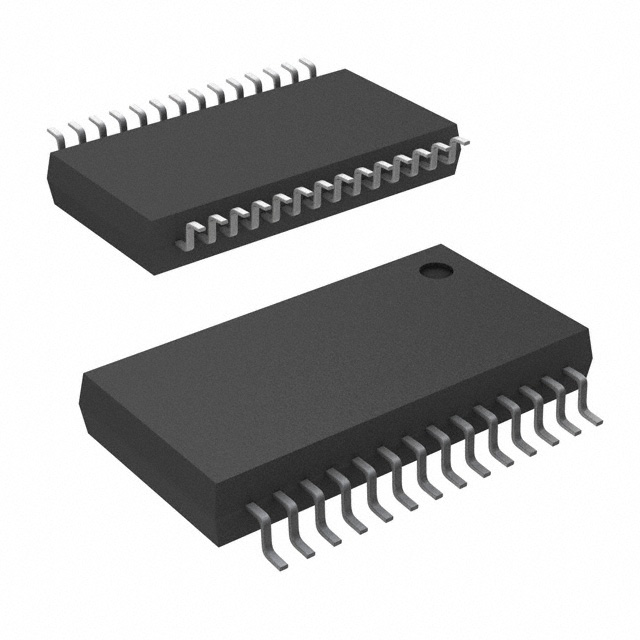

MAX3238ECDB
IC TRANSCEIVER FULL 5/3 28SSOPManufacturer: Texas Instruments
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
Texas Instruments MAX3238ECDB is a full duplex RS-232 transceiver featuring 5 drivers and 3 receivers. This component operates with a data rate of up to 400kbps and supports dual ±3V to ±5.5V supply voltages. Designed for surface mount applications, it is housed in a 28-SSOP package. The MAX3238ECDB offers 300mV of receiver hysteresis, ensuring reliable signal reception in noisy environments. Its robust design makes it suitable for a wide range of applications, including industrial automation, telecommunications, and consumer electronics where RS-232 communication is essential. The component is supplied in tubes for efficient integration into manufacturing processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Type | Transceiver |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3V ~ 5.5V |
| Number of Drivers/Receivers | 5/3 |
| Data Rate | 400kbps |
| Protocol | RS232 |
| Supplier Device Package | 28-SSOP |
| Receiver Hysteresis | 300 mV |
| Duplex | Full |
