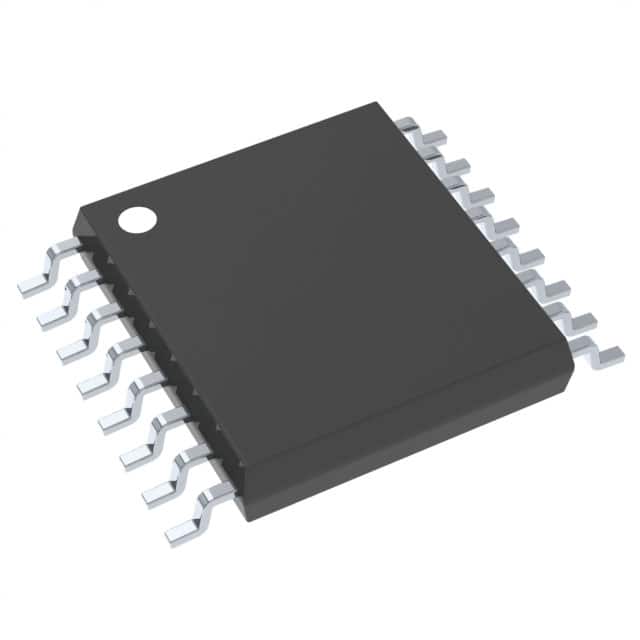

MAX3232IPW
IC TRANSCEIVER FULL 2/2 16TSSOPManufacturer: Texas Instruments
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
Texas Instruments MAX3232IPW is a robust 2/2 transceiver designed for efficient serial communication. This component operates on a wide supply voltage range from 3V to 5.5V, ensuring flexibility across various power architectures. Featuring a data rate of 250kbps, it supports full-duplex communication, enabling simultaneous transmission and reception. The MAX3232IPW is housed in a 16-TSSOP package, a surface-mount solution suitable for compact designs. Its 16-TSSOP (0.173", 4.40mm Width) package facilitates automated assembly processes. With receiver hysteresis of 300mV, it provides reliable signal integrity in noisy environments. This transceiver is commonly utilized in industrial automation, medical equipment, and consumer electronics, where RS232 communication protocols are prevalent. The operating temperature range of -40°C to 85°C ensures performance in demanding conditions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Type | Transceiver |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 5.5V |
| Number of Drivers/Receivers | 2/2 |
| Data Rate | 250kbps |
| Protocol | RS232 |
| Supplier Device Package | 16-TSSOP |
| Receiver Hysteresis | 300 mV |
| Duplex | Full |
