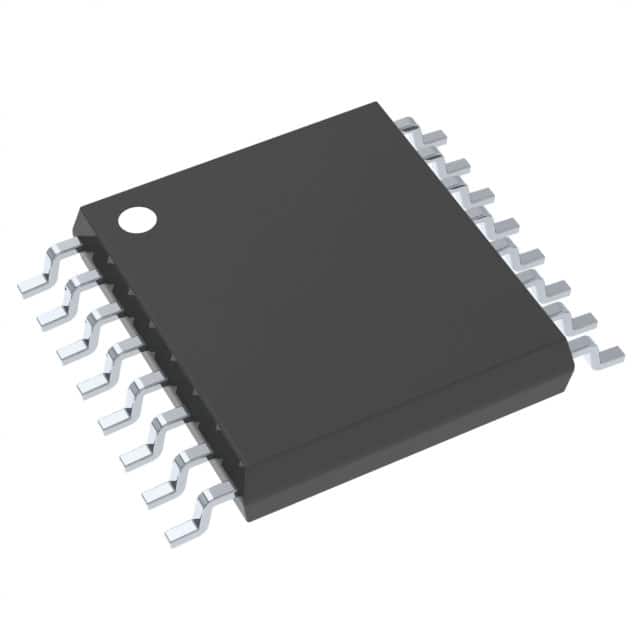

MAX3232CPW
IC TRANSCEIVER FULL 2/2 16TSSOPManufacturer: Texas Instruments
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
Texas Instruments MAX3232CPW is a 2/2 transceiver designed for RS-232 communication. This full-duplex device offers a data rate of 250kbps and operates from a 3V to 5.5V supply voltage. Featuring 300mV of receiver hysteresis, it ensures reliable signal reception. The MAX3232CPW is housed in a 16-TSSOP package with a surface mount type, making it suitable for compact PCB designs. Its robust construction and specified operating temperature range of 0°C to 70°C make it a dependable choice for applications in industrial automation, consumer electronics, and telecommunications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Type | Transceiver |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3V ~ 5.5V |
| Number of Drivers/Receivers | 2/2 |
| Data Rate | 250kbps |
| Protocol | RS232 |
| Supplier Device Package | 16-TSSOP |
| Receiver Hysteresis | 300 mV |
| Duplex | Full |
