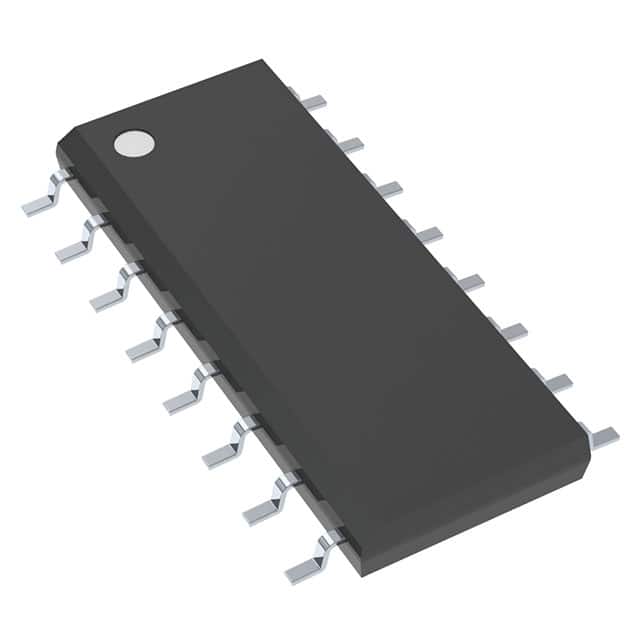

MAX3232CD
IC TRANSCEIVER FULL 2/2 16SOICManufacturer: Texas Instruments
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
Texas Instruments MAX3232CD is a 2/2 transceiver designed for RS232 serial communication. This full-duplex device supports data rates up to 250kbps and operates with a supply voltage range of 3V to 5.5V. It features receiver hysteresis of 300mV for improved noise immunity. The MAX3232CD is housed in a 16-SOIC package with a 0.154" (3.90mm) width, suitable for surface mount applications. Its operating temperature range is 0°C to 70°C. This component is widely utilized in industrial automation, medical equipment, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Type | Transceiver |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3V ~ 5.5V |
| Number of Drivers/Receivers | 2/2 |
| Data Rate | 250kbps |
| Protocol | RS232 |
| Supplier Device Package | 16-SOIC |
| Receiver Hysteresis | 300 mV |
| Duplex | Full |
