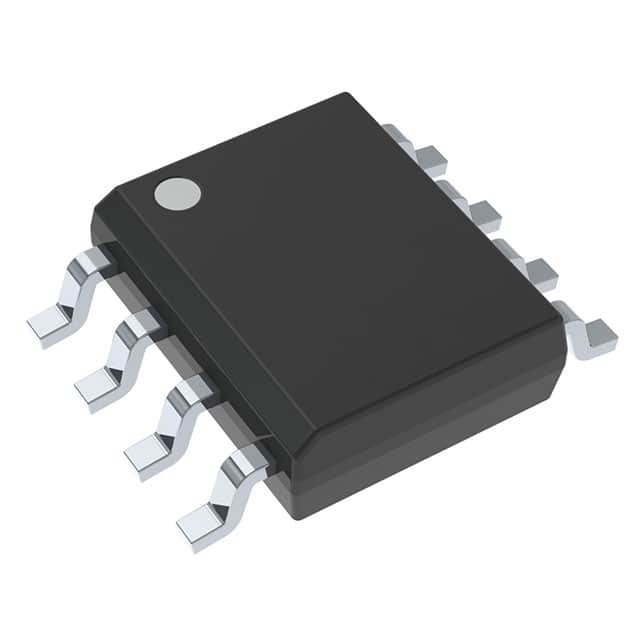

TLV5638QDG4
IC DAC 12BIT V-OUT 8SOICManufacturer: Texas Instruments
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Texas Instruments TLV5638QDG4 is a 12-bit dual-channel voltage-output digital-to-analog converter. This component features a String DAC architecture and supports an SPI data interface for efficient communication. It offers a voltage output buffer and is available in a space-saving 8-SOIC package. The TLV5638QDG4 boasts excellent linearity specifications with Integral Non-Linearity (INL) and Differential Non-Linearity (DNL) of ±1.7 LSB and ±0.4 LSB respectively. It provides flexibility with both external and internal reference types and a fast settling time of 7µs. Operating across a wide temperature range of -40°C to 125°C, this device is suitable for applications in industrial automation, medical equipment, and consumer electronics. Analog and digital supply voltage ranges are supported from 2.7V to 3.3V and 5V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.7V ~ 3.3V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.3V, 5V |
| Settling Time | 7µs |
| Supplier Device Package | 8-SOIC |
| Architecture | String DAC |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±1.7, ±0.4 |
| Differential Output | No |
| Programmable | Not Verified |
