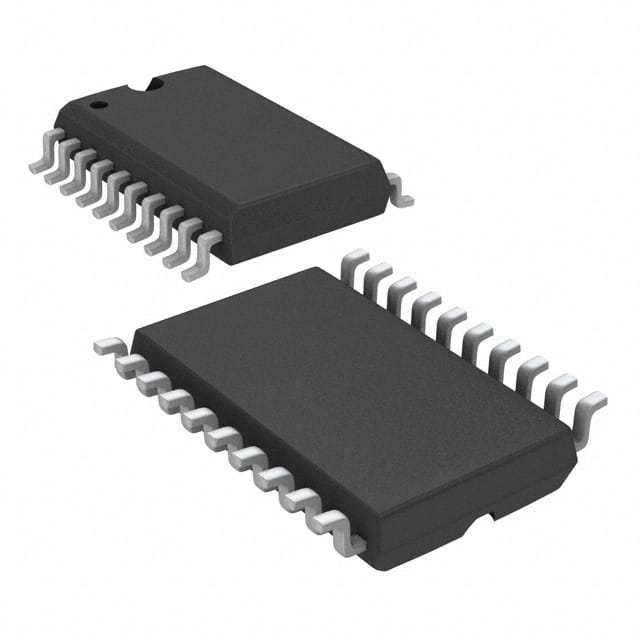

TLC7528EDWG4
IC DAC 8BIT A-OUT 20SOICManufacturer: Texas Instruments
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Texas Instruments TLC7528EDWG4 is an 8-bit dual-channel digital-to-analog converter (DAC) featuring an R-2R architecture. This device provides an unbuffered current output and requires an external voltage reference. The parallel data interface simplifies integration into existing digital systems. With Integral Non-Linearity (INL) and Differential Non-Linearity (DNL) of ±0.5 LSB (Max), the TLC7528EDWG4 offers precise conversion. It supports analog and digital supply voltages from 5V to 15V and has a typical settling time of 100ns. This component is suitable for applications in industrial control, data acquisition, and instrumentation. The 20-SOIC (0.295", 7.50mm Width) package is designed for surface mounting. Operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V ~ 15V |
| Voltage - Supply, Digital | 5V ~ 15V |
| Settling Time | 100ns |
| Supplier Device Package | 20-SOIC |
| Architecture | R-2R |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±0.5 (Max), ±0.5 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
