TLC7524IFN
IC DAC 8BIT A-OUT 20PLCCManufacturer: Texas Instruments
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More

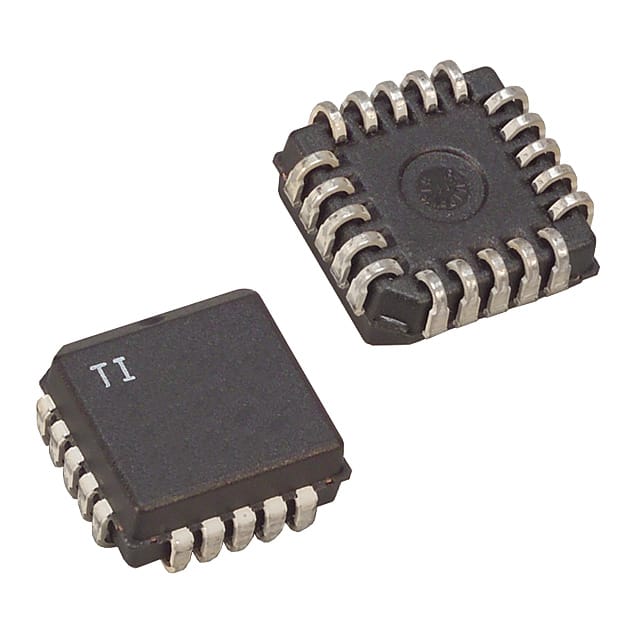

Texas Instruments TLC7524IFN is an 8-bit, R-2R ladder digital-to-analog converter featuring a single unbuffered current output. This component offers a parallel data interface and supports differential output. Maximum integral nonlinearity (INL) and differential nonlinearity (DNL) are rated at ±0.5 LSB and ±2.5 LSB, respectively. The TLC7524IFN requires an external voltage reference. It operates with analog and digital supply voltages ranging from 5V to ±15.5V. With a settling time of 100ns, this device is suitable for applications in industrial control and telecommunications. The component is supplied in a 20-PLCC (9x9) surface mount package, provided in bulk.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 20-LCC (J-Lead) |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply, Analog | 5V, 14.5V ~ 15.5V |
| Voltage - Supply, Digital | 5V, 14.5V ~ 15.5V |
| Settling Time | 100ns |
| Supplier Device Package | 20-PLCC (9x9) |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5 (Max), ±2.5 (Max) |
| Differential Output | Yes |
| Programmable | Not Verified |
