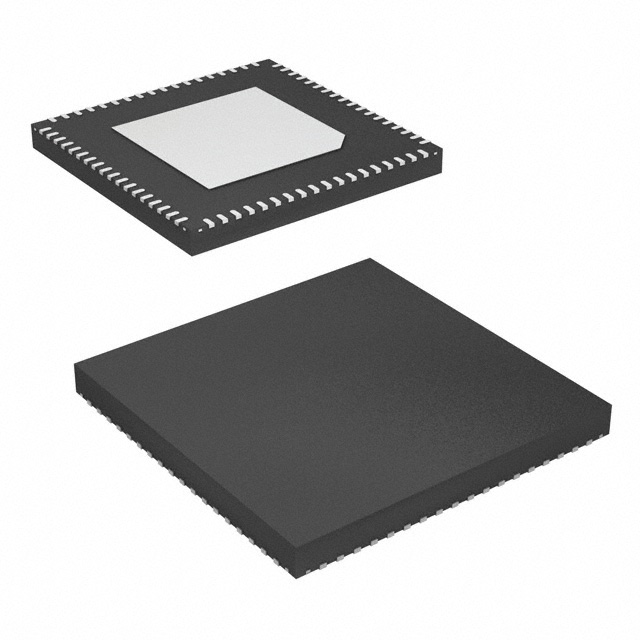

DAC8775IRWFT
IC DAC 16BIT ANLG A/V-OUT 72QFNManufacturer: Texas Instruments
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Texas Instruments DAC8775 is a 16-bit, quad-channel digital-to-analog converter (DAC) featuring an analog current and voltage output. This device operates with a 12V to 36V analog supply and a 2.7V to 5.5V digital supply, with an operating temperature range of -40°C to 125°C. The DAC8775 utilizes a String DAC architecture and communicates via an SPI data interface. It is housed in a 72-VFQFN exposed pad package, measuring 10x10mm. Key specifications include an INL/DNL of ±12, ±1 LSB maximum and a settling time of 30µs. The DAC8775 is suitable for applications in industrial automation, process control, and test and measurement equipment. This component is supplied in a Tape & Reel (TR) package.
Additional Information
Series: DAC8775RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 72-VFQFN Exposed Pad |
| Output Type | Analog Current and Voltage |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply, Analog | 12V ~ 36V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 30µs |
| Supplier Device Package | 72-VQFN (10x10) |
| Architecture | String DAC |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±12, ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
