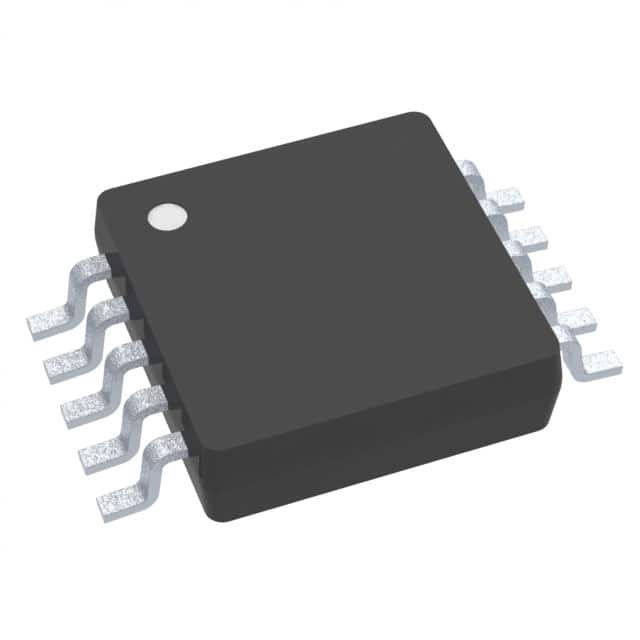

DAC8562SQDGSRQ1
IC DAC 16BIT V-OUT 10VSSOPManufacturer: Texas Instruments
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
16 Bit Digital to Analog Converter 2 10-VSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 10µs (Typ) |
| Supplier Device Package | 10-VSSOP |
| Architecture | String DAC |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±4, ±0.2 |
| Differential Output | No |
| Grade | Automotive |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
