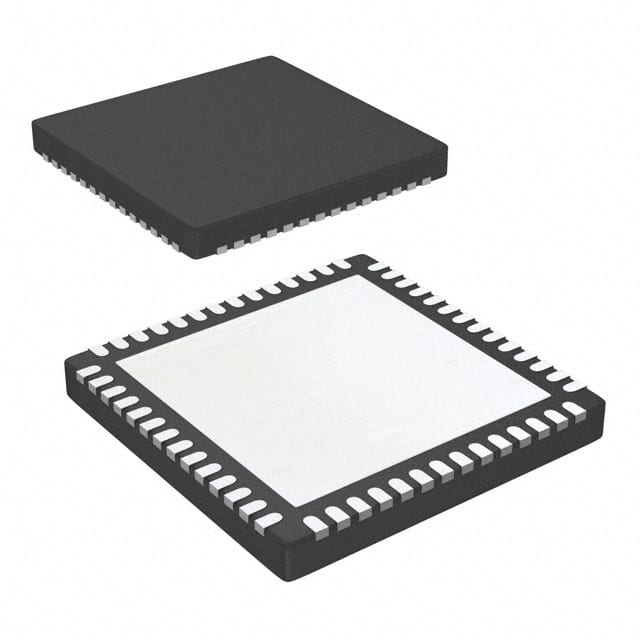

DAC8228SRTQR
IC DAC 14BIT V-OUT 56QFNManufacturer: Texas Instruments
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
14 Bit Digital to Analog Converter 8 56-QFN (8x8)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-VFQFN Exposed Pad |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 9V ~ 36V, ±4.5V ~ 18V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 15µs (Typ) |
| Supplier Device Package | 56-QFN (8x8) |
| Architecture | String DAC |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
