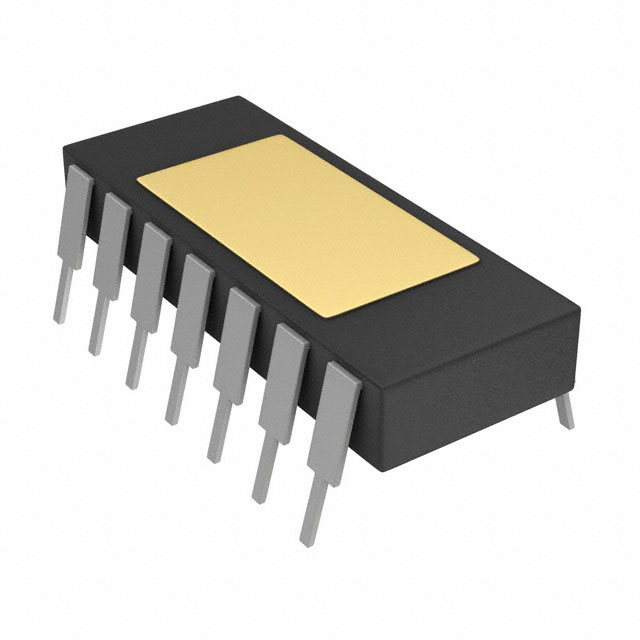

DAC811BH
IC DAC 12BIT V-OUT 28CDIPManufacturer: Texas Instruments
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Texas Instruments DAC811BH is a 12-bit, single-channel, voltage-output digital-to-analog converter featuring an R-2R architecture. This component offers a parallel data interface for efficient data transfer. The DAC811BH boasts a typical INL/DNL of ±0.125 LSB and ±0.25 LSB respectively, with a fast settling time of 4µs. It operates with analog supply voltages ranging from ±11.4V to ±16.5V and a digital supply of 5V. The output is voltage, buffered, and the reference type is internal. Packaged in a 28-CDIP with a window, this device is designed for through-hole mounting. The DAC811BH finds application in industrial control systems, data acquisition, and test and measurement equipment. It operates within an ambient temperature range of -25°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 28-CDIP (0.600"", 15.24mm) Window |
| Output Type | Voltage - Buffered |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | Internal |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 4µs |
| Supplier Device Package | 28-CDIP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.125, ±0.25 |
| Differential Output | No |
| Programmable | Not Verified |
