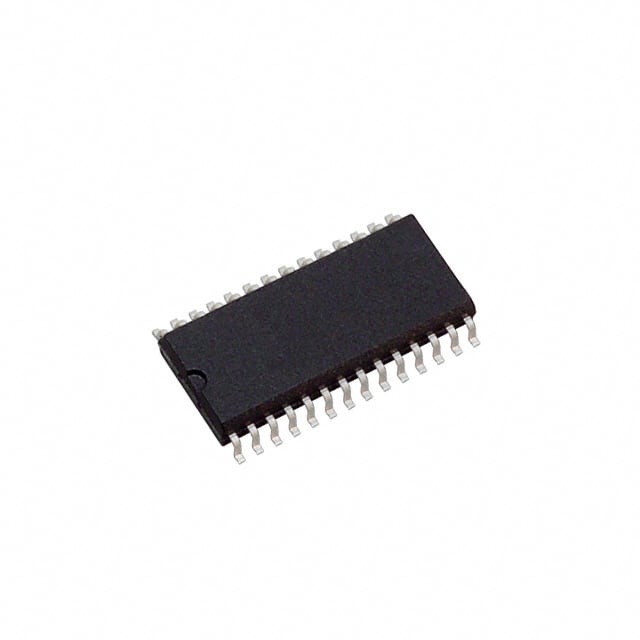

DAC712U
IC DAC 16BIT V-OUT 28SOICManufacturer: Texas Instruments
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Texas Instruments DAC712U is a 16-bit, single-channel voltage-output digital-to-analog converter (DAC). This component features an R-2R architecture and a parallel data interface, making it suitable for high-precision conversion tasks. The DAC712U offers a voltage output that is buffered and a settling time of 6µs typical. It operates within an analog supply voltage range of ±11.4V to ±16.5V and is specified for operation between -40°C and 85°C. The integral and differential non-linearity (INL/DNL) are rated at ±8 LSB maximum. This device is available in a 28-SOIC (0.295", 7.50mm width) surface-mount package. The DAC712U finds application in industrial control systems, test and measurement equipment, and audio processing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-SOIC (0.295"", 7.50mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | Parallel |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | - |
| Settling Time | 6µs (Typ) |
| Supplier Device Package | 28-SOIC |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±8 (Max), ±8 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
