DAC70BH-CSB-I

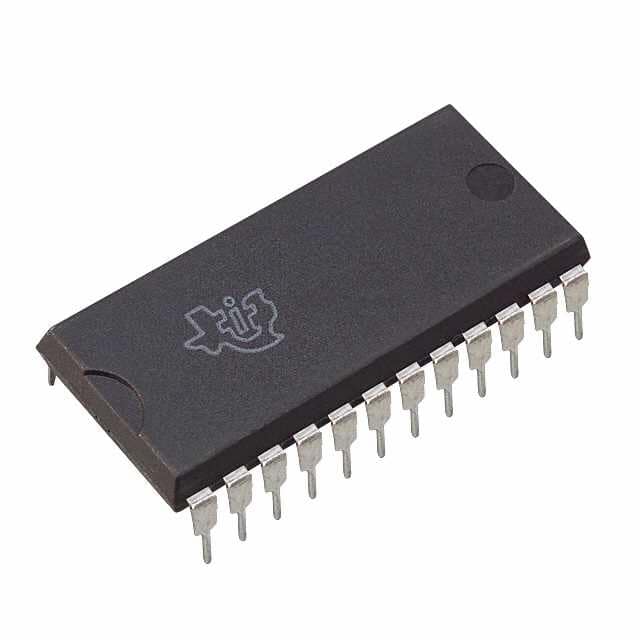

IC DAC 16BIT V-OUT 24CDIPManufacturer: Texas Instruments
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Texas Instruments DAC70BH-CSB-I is a 16-bit, single-channel voltage-output digital-to-analog converter. Featuring an R-2R architecture, this device utilizes a parallel data interface for direct data input. The DAC70BH-CSB-I offers a voltage output, buffered for stable operation, and a guaranteed monotonic performance. Its internal voltage reference ensures consistent conversion accuracy across its operating temperature range of -25°C to 85°C. The component is supplied in a 24-lead Ceramic DIP (CDIP) package designed for through-hole mounting. This converter is suitable for precision instrumentation, industrial control systems, and data acquisition applications requiring accurate analog signal generation. Analog supply voltages can range from ±14.5V to ±15.5V, with a digital supply of 5V. The settling time for a full-scale step is 10µs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-CDIP (0.600"", 15.24mm) |
| Output Type | Voltage - Buffered |
| Mounting Type | Through Hole |
| Number of Bits | 16 |
| Data Interface | Parallel |
| Reference Type | Internal |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply, Analog | ±14.5V ~ 15.5V, 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 10µs |
| Supplier Device Package | 24-CDIP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | - |
| Differential Output | No |
| Programmable | Not Verified |
