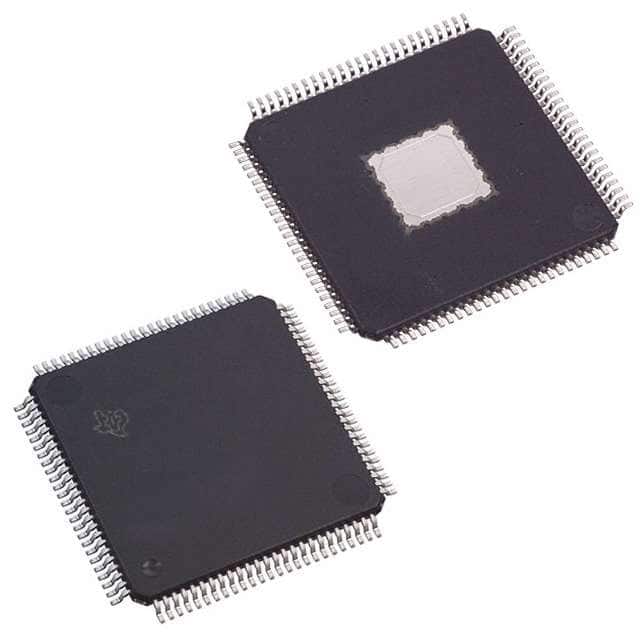

DAC5687IPZPG4
IC DAC 16BIT A-OUT 100HTQFPManufacturer: Texas Instruments
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Texas Instruments DAC5687IPZPG4 is a dual 16-bit current-output digital-to-analog converter. This device features a current sink architecture and a parallel data interface. It offers differential current outputs with excellent linearity, specified at ±4 LSB for both INL and DNL. The DAC5687IPZPG4 supports external or internal voltage references and boasts a fast settling time of 10.4ns (typical).
Designed for surface mounting, it is supplied in a 100-HTQFP (14x14) package with an exposed pad. Analog supply voltage ranges from 3V to 3.6V, while digital supply voltage is between 1.71V and 2.15V. This component operates across a temperature range of -40°C to 85°C. Applications for this high-performance DAC include cable modems, base stations, and test instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 100-TQFP Exposed Pad |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 1.71V ~ 2.15V |
| Settling Time | 10.4ns (Typ) |
| Supplier Device Package | 100-HTQFP (14x14) |
| Architecture | Current Sink |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±4, ±4 |
| Differential Output | Yes |
| Programmable | Not Verified |
