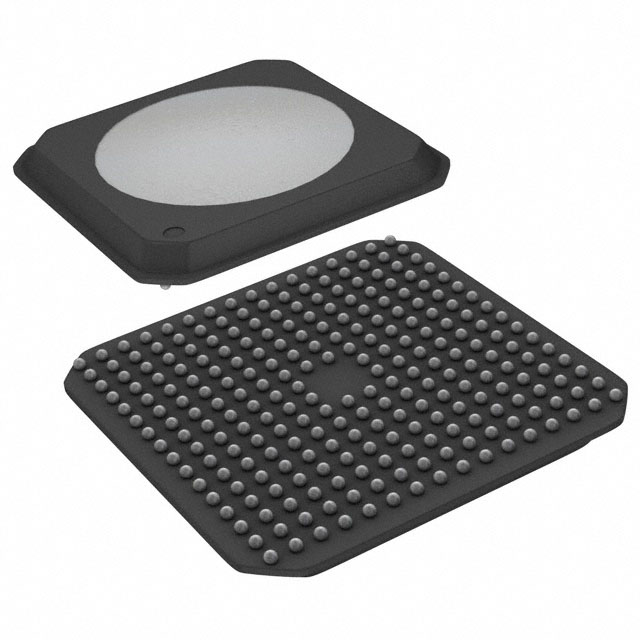

DAC5670IGDJ
IC DAC 14BIT A-OUT 252BGAManufacturer: Texas Instruments
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Texas Instruments' DAC5670IGDJ is a 14-bit, single-channel current-output digital-to-analog converter. Featuring a current sink architecture, this component offers a differential output and supports both external and internal voltage references. The DAC5670IGDJ boasts a typical settling time of 3.5ns and exhibits integral and differential non-linearity (INL/DNL) of ±1.5 LSB and ±0.8 LSB, respectively. It operates over an analog and digital supply voltage range of 3V to 3.6V and is specified for operation between -40°C and 85°C. The device is supplied in a 252-BGA (17x17) package for surface mounting. This high-performance DAC is suitable for applications in communications, test and measurement equipment, and medical imaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 252-BGA |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Settling Time | 3.5ns (Typ) |
| Supplier Device Package | 252-BGA (17x17) |
| Architecture | Current Sink |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±1.5, ±0.8 |
| Differential Output | Yes |
| Programmable | Not Verified |
