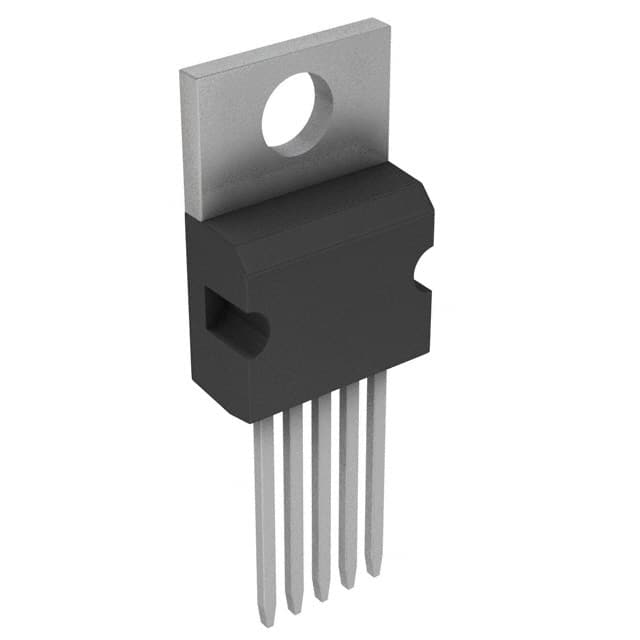

UC2577T-ADJ
IC REG MULT CONFIG ADJ 3A TO220Manufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Texas Instruments UC2577T-ADJ is a versatile switching regulator IC designed for step-up, step-up/step-down, boost, flyback, and forward converter topologies. This positive adjustable output device offers a robust 3A switch current capability and operates from an input voltage range of 3V to 40V, with an output voltage adjustable up to 60V. Featuring a switching frequency of 52kHz, the UC2577T-ADJ is suitable for applications requiring efficient power conversion. The device is housed in a TO-220-5 package and is intended for through-hole mounting. Its operational temperature range is -40°C to 125°C (TJ). This component finds application in various industrial and consumer electronics sectors requiring reliable voltage regulation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-220-5 |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Function | Step-Up, Step-Up/Step-Down |
| Current - Output | 3A (Switch) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 52kHz |
| Voltage - Input (Max) | 40V |
| Topology | Boost, Flyback, Forward Converter |
| Supplier Device Package | TO-220-5 |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 60V |
| Voltage - Input (Min) | 3V |
| Voltage - Output (Min/Fixed) | 5V |
Request a Quote
