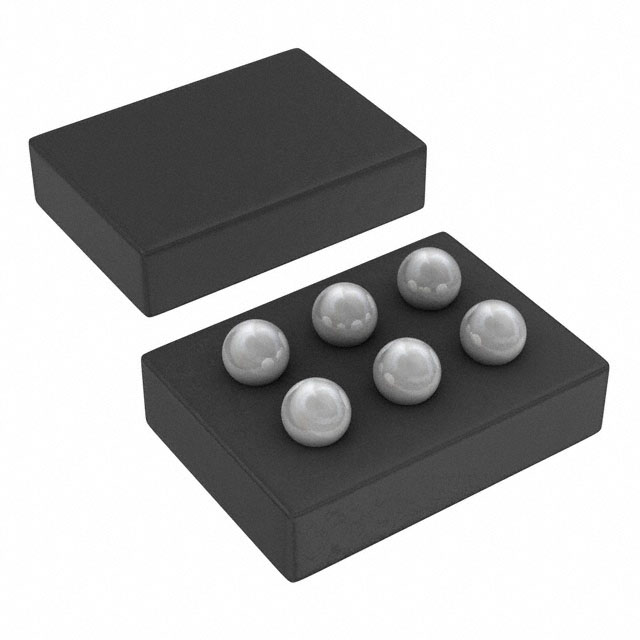

TPS62600YFFT
IC REG BUCK 1.83V 500MA 6DSBGAManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Texas Instruments TPS62600YFFT is a highly efficient synchronous buck converter designed for optimal power management in space-constrained applications. This device delivers a fixed 1.83V output with a maximum current of 500mA, operating from an input voltage range of 2.3V to 5.5V. Featuring a high switching frequency of 6MHz, the TPS62600YFFT enables the use of small passive components, reducing overall solution size. Its integrated synchronous rectifier eliminates the need for an external inductor, further enhancing power density. The 6-DSBGA package provides a compact footprint suitable for portable electronics, medical devices, and communication infrastructure. The device operates within an ambient temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFBGA, DSBGA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 500mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 6MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 6-DSBGA |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.3V |
| Voltage - Output (Min/Fixed) | 1.83V |
