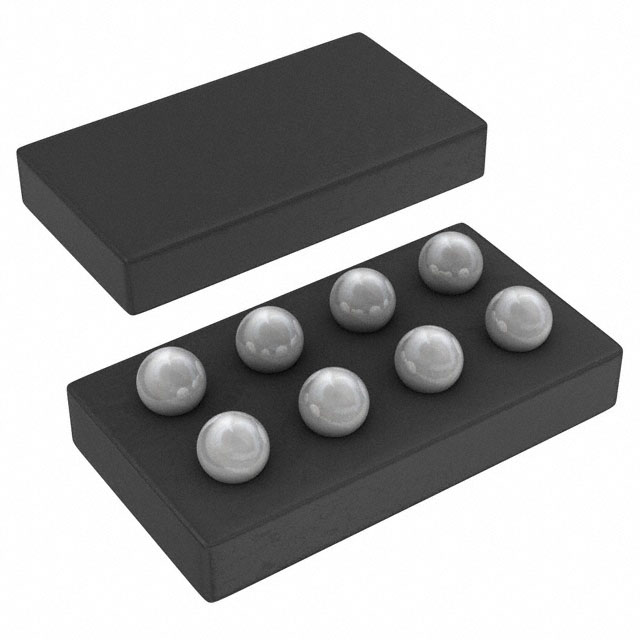

TPS62300YZDT
IC REG BUCK ADJ 500MA 8DSBGAManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Texas Instruments TPS62300YZDT is a highly efficient, synchronous step-down DC-DC converter. This device features a 3MHz switching frequency, enabling the use of small external components. The adjustable output voltage can be set from 0.6V up to 5.4V, with a maximum output current capability of 500mA. Its positive output configuration and adjustable functionality make it suitable for power management in portable devices, consumer electronics, and industrial applications. The TPS62300YZDT utilizes a buck topology and is housed in a compact 8-DSBGA package, designed for surface mounting. It operates with input voltages ranging from 2.7V to 6V and is rated for an ambient temperature range of -40°C to 85°C. The inclusion of a synchronous rectifier enhances efficiency.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UFBGA, DSBGA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 500mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 3MHz |
| Voltage - Input (Max) | 6V |
| Topology | Buck |
| Supplier Device Package | 8-DSBGA |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.4V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | 0.6V |
