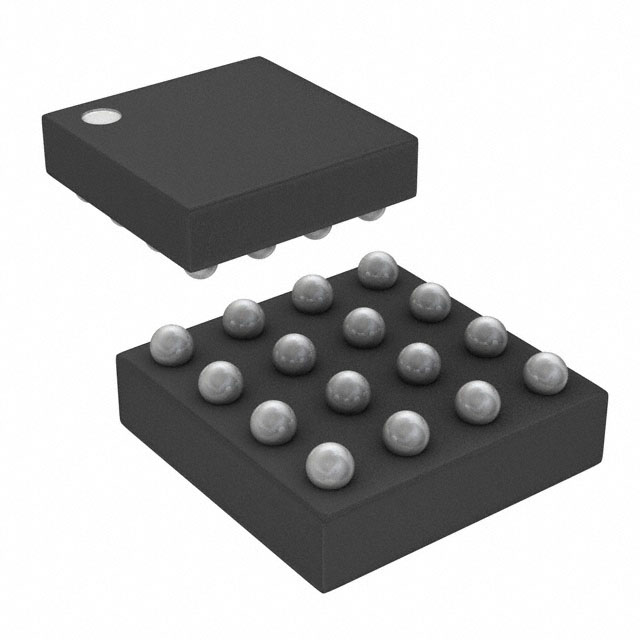

TPS61280YFFT
IC REG BOOST PROG 5A 16DSBGAManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Texas Instruments TPS61280YFFT is a high-efficiency, synchronous boost DC/DC converter. This device is engineered for step-up voltage conversion, capable of delivering up to 5A switch current. It features a fixed output voltage of 2.85V and a programmable output voltage up to 4.4V, with an input voltage range of 2.3V to 4.85V. The TPS61280YFFT operates at a switching frequency of 2.3MHz, facilitating the use of smaller external components. Its 16-DSBGA package, measuring 1.67x1.67mm, is suited for space-constrained applications. This component is utilized in power management for portable electronics and other high-performance systems requiring efficient voltage boosting. The device is supplied in Tape & Reel for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-UFBGA, DSBGA |
| Output Type | Programmable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up |
| Current - Output | 5A (Switch) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 2.3MHz |
| Voltage - Input (Max) | 4.85V |
| Topology | Boost |
| Supplier Device Package | 16-DSBGA (1.67x1.67) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 4.4V |
| Voltage - Input (Min) | 2.3V |
| Voltage - Output (Min/Fixed) | 2.85V |
