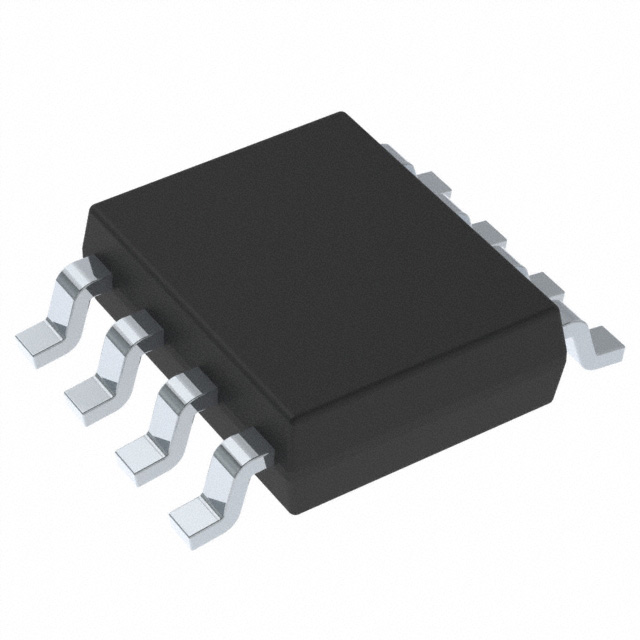

TPS54560DDAR

IC REG BCK SPLIT RAIL ADJ 8SOPWR

Quality Control: Learn More

Texas Instruments TPS54560DDAR is a highly efficient, adjustable, split-rail buck converter designed for demanding applications. This Eco-Mode™ series device supports input voltages from 4.5V to 60V, with an output voltage adjustable from 0.8V up to 58.8V. It delivers a continuous output current of 5A, making it suitable for power management in industrial automation, automotive systems, and high-performance computing. The TPS54560DDAR operates with a wide switching frequency range of 100kHz to 2.5MHz, enabling optimized component selection and power density. Its 8-PowerSOIC package with PowerPAD™ technology facilitates efficient thermal management, crucial for sustained operation at its 150°C junction temperature limit. This non-synchronous buck regulator features a split-rail topology, providing flexible output voltage configurations.

Additional Information

Series: Eco-Mode™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:

Download Free CAD Model:

Technical Details:

Packaging	Tape & Reel (TR)
Package / Case	8-PowerSOIC (0.154"", 3.90mm Width)
Output Type	Adjustable
Mounting Type	Surface Mount
Number of Outputs	1
Function	Step-Down
Current - Output	5A
Operating Temperature	-40°C ~ 150°C (TJ)
Output Configuration	Positive
Frequency - Switching	100kHz ~ 2.5MHz
Voltage - Input (Max)	60V
Topology	Buck, Split Rail
Supplier Device Package	8-SO PowerPad
Synchronous Rectifier	No
Voltage - Output (Max)	58.8V
Voltage - Input (Min)	4.5V
Voltage - Output (Min/Fixed)	0.8V
