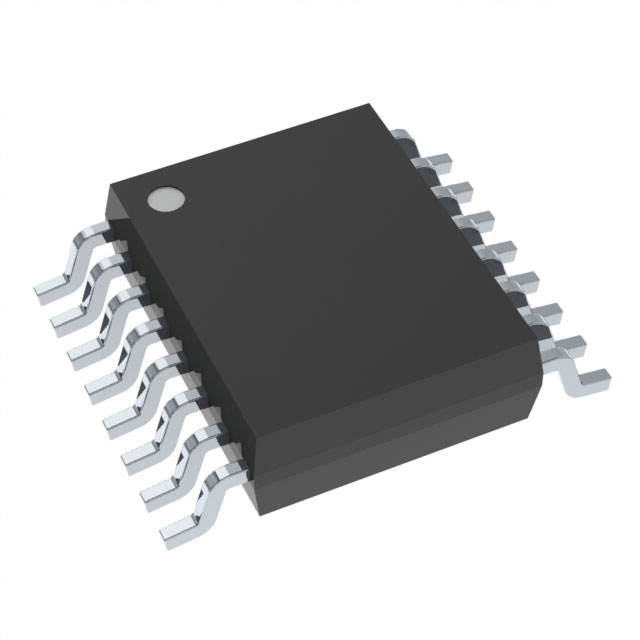

TPS54550PWPRG4
IC REG BUCK ADJ 6A 16HTSSOPManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Texas Instruments SWIFT™ series TPS54550PWPRG4 is a highly efficient buck switching regulator IC. This adjustable positive output regulator supports a 6A output current and features a wide input voltage range from 4.5V to 20V, with a maximum output voltage of 17.2V and a minimum adjustable output of 0.891V. The device operates with selectable switching frequencies of 250kHz or 500kHz. Its 16-PowerTSSOP (0.173", 4.40mm Width) package with surface mount mounting type ensures a compact footprint. The integrated synchronous rectifier enhances efficiency. This component is ideal for applications in industrial automation, automotive systems, and power supplies requiring robust voltage regulation. It is supplied on a Tape & Reel (TR) for automated assembly.
Additional Information
Series: SWIFT™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-PowerTSSOP (0.173"", 4.40mm Width) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 6A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 250kHz, 500kHz |
| Voltage - Input (Max) | 20V |
| Topology | Buck |
| Supplier Device Package | 16-HTSSOP |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 17.2V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 0.891V |
