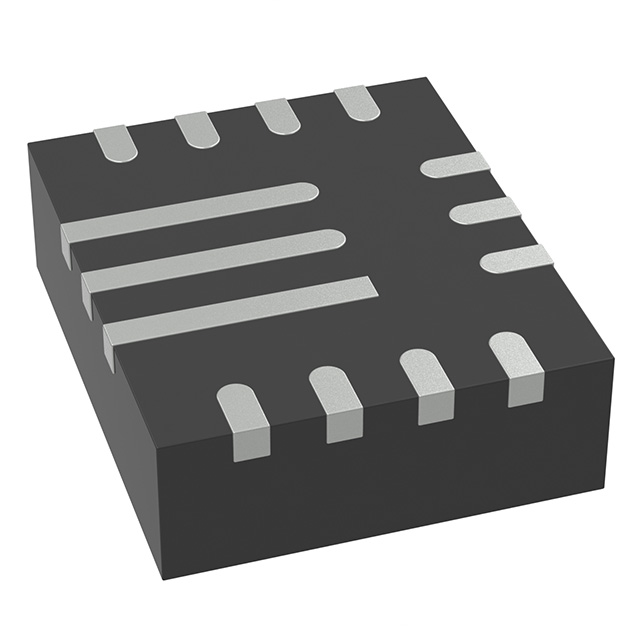

TPS543620RPYR
IC REG BUCK ADJ 6A 14VQFNManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck Switching Regulator IC Positive Adjustable 0.5V 1 Output 6A 14-PowerVFQFN
Additional Information
Series: SWIFT™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-PowerVFQFN |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 6A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 500kHz, 750kHz, 1MHz, 1.5MHz, 2.2MHz |
| Voltage - Input (Max) | 18V |
| Topology | Buck |
| Supplier Device Package | 14-VQFN-HR (2.5x3) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 4V |
| Voltage - Output (Min/Fixed) | 0.5V |
