SM72485E/NOPB
IC REG BUCK ADJ 150MA 8WSONManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Texas Instruments SM72485E-NOPB is a SolarMagic™ series buck switching regulator. This adjustable positive output regulator offers a wide input voltage range from 6V to 95V, with a maximum output voltage of 85V. It is designed to deliver up to 150mA of output current from a single output. The switching frequency can be set between 50kHz and 1.1MHz. The device features an adjustable output voltage starting at a minimum of 2.5V. Housed in an 8-WSON (4x4) package, this surface mount component is suitable for applications requiring efficient step-down voltage conversion. The SM72485E-NOPB operates across a temperature range of -40°C to 125°C (TJ). It is commonly utilized in solar power management and other power supply applications.
Additional Information
Series: SolarMagic™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

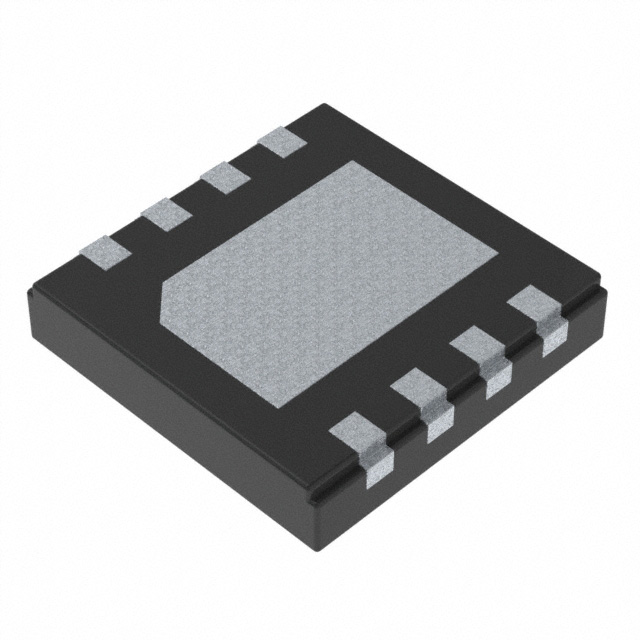

| Package / Case | 8-WDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 50kHz ~ 1.1MHz |
| Voltage - Input (Max) | 95V |
| Topology | Buck |
| Supplier Device Package | 8-WSON (4x4) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 85V |
| Voltage - Input (Min) | 6V |
| Voltage - Output (Min/Fixed) | 2.5V |
