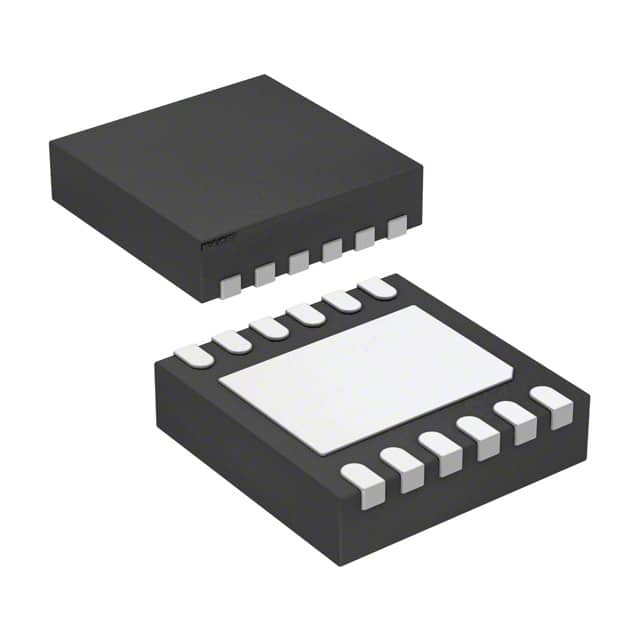

LMR23630QDRRTQ1
IC REG BUCK ADJ 3A 12SONManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck Switching Regulator IC Positive Adjustable 1V 1 Output 3A 12-WFDFN Exposed Pad
Additional Information
Series: SIMPLE SWITCHER®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount, Wettable Flank |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 150kHz ~ 2.425MHz |
| Voltage - Input (Max) | 36V |
| Topology | Buck |
| Supplier Device Package | 12-SON (3x3) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 28V |
| Voltage - Input (Min) | 4V |
| Voltage - Output (Min/Fixed) | 1V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
Request a Quote
