LM76005RNPR
IC REG BUCK ADJ 5A 30WQFNManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Texas Instruments LM76005RNPR is a high-performance, adjustable buck switching regulator designed for demanding applications. This device delivers a robust 5A output current with an input voltage range of 3.5V to 60V, and an adjustable output voltage from 1V up to 57V. Its efficient step-down topology and integrated synchronous rectifier ensure optimal power conversion. Operating with a switching frequency selectable between 200kHz and 500kHz, the LM76005RNPR offers a balance of efficiency and component size. The 30-WFQFN Exposed Pad package with wettable flanks facilitates robust surface mount assembly and enhanced solder joint reliability. This component is suitable for use in industrial power supplies, automotive systems, and telecommunications infrastructure. The operating temperature range is -40°C to 125°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

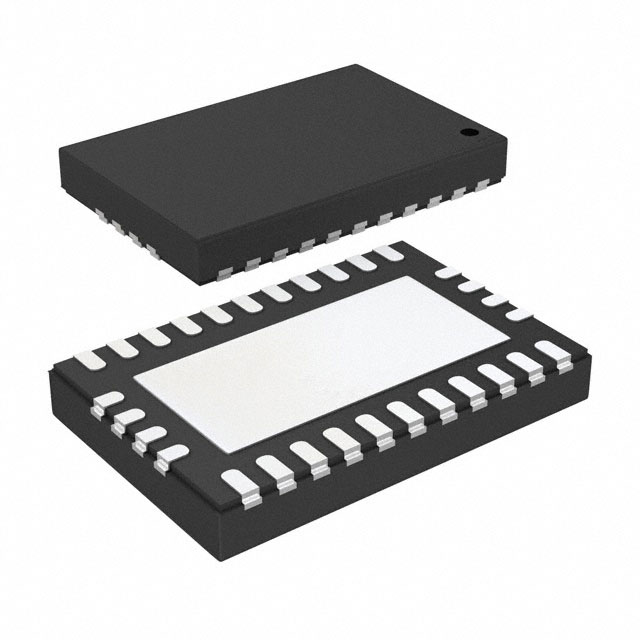

| Package / Case | 30-WFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount, Wettable Flank |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 5A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz ~ 500kHz |
| Voltage - Input (Max) | 60V |
| Topology | Buck |
| Supplier Device Package | 30-WQFN (6x4) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 57V |
| Voltage - Input (Min) | 3.5V |
| Voltage - Output (Min/Fixed) | 1V |
