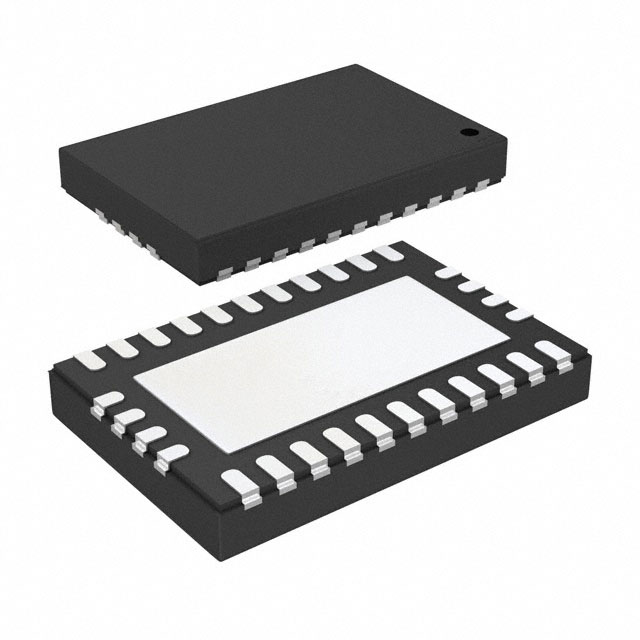

LM76003RNPR
IC REG BUCK ADJ 3.5A 30WQFNManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck Switching Regulator IC Positive Adjustable 1V 1 Output 3.5A 30-WFQFN Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 30-WFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount, Wettable Flank |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 3.5A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 300kHz ~ 2.2MHz |
| Voltage - Input (Max) | 60V |
| Topology | Buck |
| Supplier Device Package | 30-WQFN (6x4) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 57V |
| Voltage - Input (Min) | 3.5V |
| Voltage - Output (Min/Fixed) | 1V |
