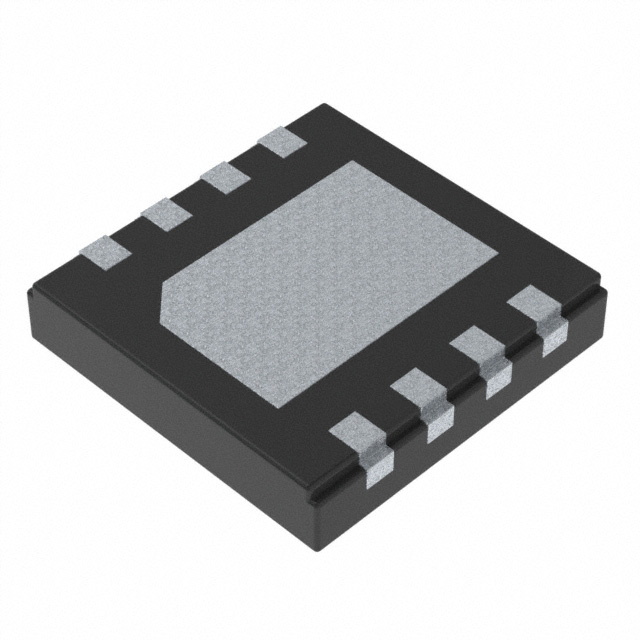

LM5180QNGURQ1
IC REG FLYBACK ADJ 8WSONManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Flyback Switching Regulator IC Positive and Negative Adjustable 1 Output 8-WDFN Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive and Negative |
| Frequency - Switching | 12kHz ~ 350kHz |
| Voltage - Input (Max) | 65V |
| Topology | Flyback |
| Supplier Device Package | 8-WSON (4x4) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
