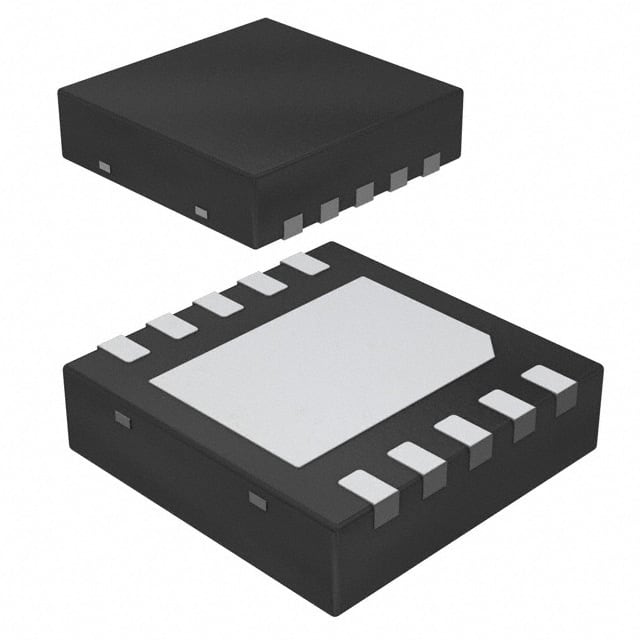

LM5010ASD
IC REG BUCK ADJ 1A 10WSONManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Texas Instruments LM5010ASD is a high-voltage, monolithic synchronous buck regulator IC. This adjustable output device efficiently steps down input voltages from 6V to 75V to a selectable output voltage range of 2.5V to 70V, with a maximum output current of 1A. Operating with a switching frequency adjustable from 100kHz to 1MHz, the LM5010ASD utilizes a non-synchronous buck topology. Its 10-WSON (4x4) package with an exposed pad ensures effective thermal management. This component is well-suited for applications in industrial automation, automotive systems, and power supply designs requiring robust voltage regulation. The device operates across an ambient temperature range of -40°C to 150°C (TJ). It is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 1MHz |
| Voltage - Input (Max) | 75V |
| Topology | Buck |
| Supplier Device Package | 10-WSON (4x4) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 70V |
| Voltage - Input (Min) | 6V |
| Voltage - Output (Min/Fixed) | 2.5V |
