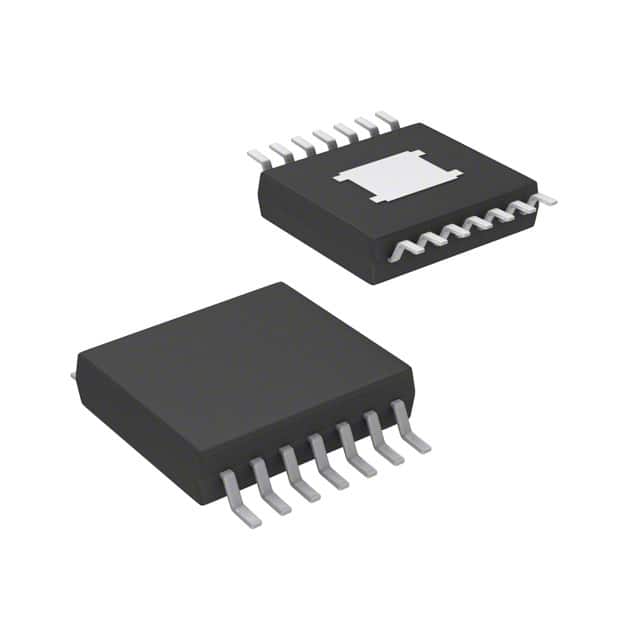

LM5010AMHX
IC REG BUCK ADJ 1A 14HTSSOPManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Texas Instruments LM5010AMHX is an adjustable output voltage, 1A buck switching regulator designed for high-voltage applications. This device operates from a wide input voltage range of 6V to 75V, with an adjustable output voltage from 2.5V up to 70V. Featuring an integrated 1A switch, the LM5010AMHX simplifies design by eliminating the need for an external Schottky diode and inductor. Its switching frequency is adjustable from 100kHz to 1MHz, allowing for optimization of component size and efficiency. The device utilizes a non-synchronous buck topology and is available in a 14-PowerTSSOP package for surface mounting. Operating temperature range is -40°C to 150°C (TJ). This component is commonly found in industrial power supplies, high-voltage DC-DC converters, and LED drivers. Packaging is Tape & Reel (TR).
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 40 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-PowerTSSOP (0.173"", 4.40mm Width) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 1MHz |
| Voltage - Input (Max) | 75V |
| Topology | Buck |
| Supplier Device Package | 14-HTSSOP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 70V |
| Voltage - Input (Min) | 6V |
| Voltage - Output (Min/Fixed) | 2.5V |
