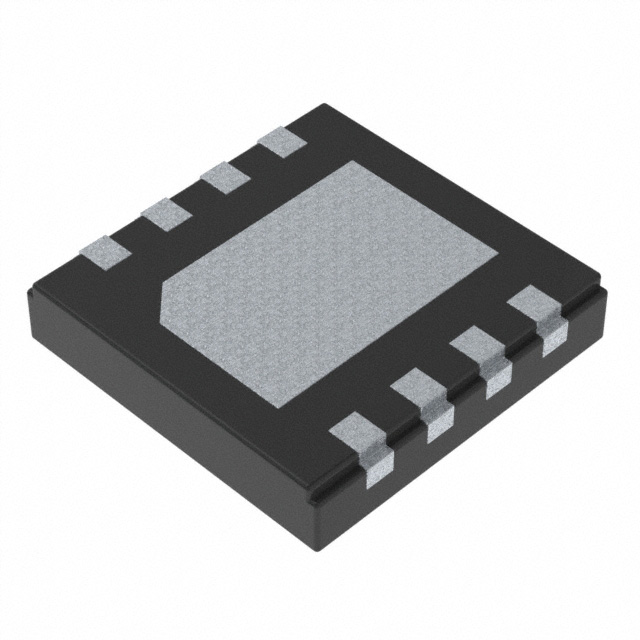

LM5008SD
IC REG BUCK ADJ 350MA 8WSONManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Texas Instruments LM5008SD is a high voltage step-down switching regulator designed for efficient power conversion. This buck regulator operates with an input voltage range of 9.5V to 95V, supporting adjustable output voltages from a minimum of 2.5V up to 75V. The device delivers a continuous output current of 350mA. Featuring a switching frequency adjustable from 50kHz to 600kHz, the LM5008SD allows for optimization of component size and efficiency. Its topology is a non-synchronous buck converter. The LM5008SD is housed in an 8-WSON (4x4) package with an exposed pad for enhanced thermal performance, suitable for surface mount applications. This component finds utility in various industrial, automotive, and consumer electronics applications requiring robust and efficient DC-DC conversion. The operating temperature range is -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 350mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 50kHz ~ 600kHz |
| Voltage - Input (Max) | 95V |
| Topology | Buck |
| Supplier Device Package | 8-WSON (4x4) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 75V |
| Voltage - Input (Min) | 9.5V |
| Voltage - Output (Min/Fixed) | 2.5V |
