LM5002MAX

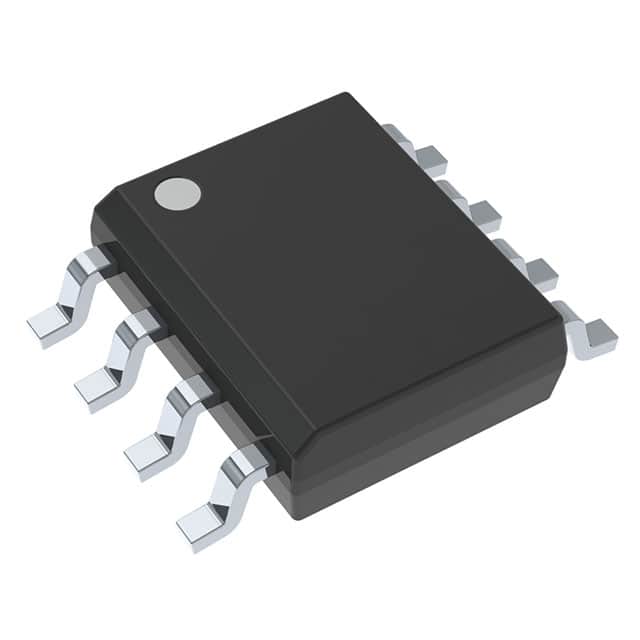

IC REG MULTI CONFG ADJ 8SOICManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Texas Instruments LM5002MAX is a versatile constant-on-time (COT) synchronous step-up (Boost), flyback, forward converter, and SEPIC switching regulator. This adjustable positive output device is capable of isolation and operates with an input voltage range from 3.1V to 75V, delivering an output adjustable from 3.1V up to 76V. Featuring a switch current capability of 400mA, the LM5002MAX supports switching frequencies from 50kHz to 1.5MHz. Its design is suitable for applications requiring flexible power conversion topologies, including automotive, industrial power supplies, and battery-powered devices. This component is available in an 8-SOIC (0.154", 3.90mm Width) package, supplied on tape and reel (TR).
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 44 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up, Step-Up/Step-Down |
| Current - Output | 400mA (Switch) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | 50kHz ~ 1.5MHz |
| Voltage - Input (Max) | 75V |
| Topology | Boost, Flyback, Forward Converter, SEPIC |
| Supplier Device Package | 8-SOIC |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 76V (Switch) |
| Voltage - Input (Min) | 3.1V |
| Voltage - Output (Min/Fixed) | 3.1V |
