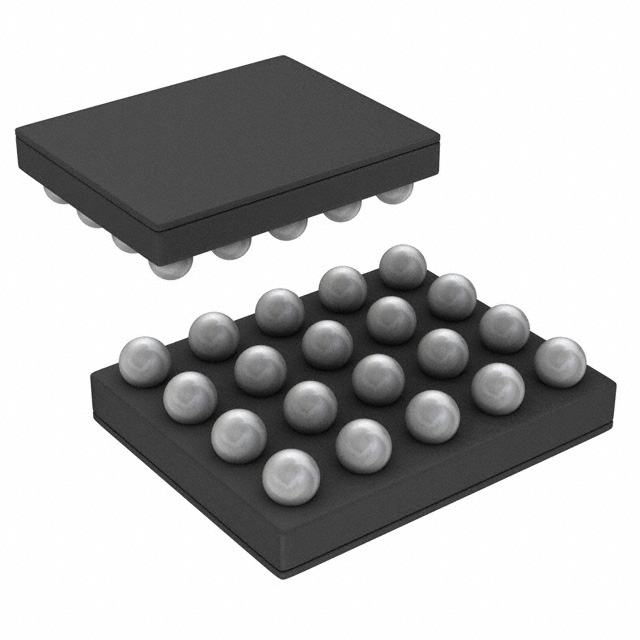

LM3370TL-3022/NOPB
IC REG BCK 1.2V/1.85V DL 20DSBGAManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Texas Instruments LM3370TL-3022-NOPB is a dual-output, synchronous buck switching regulator. This component provides two fixed output voltages of 1.2V and 1.85V, each capable of delivering up to 600mA. Operating with an input voltage range of 2.7V to 5.5V, it features a high switching frequency of 2MHz, enabling the use of smaller external components. The device is housed in a 20-DSBGA package, suitable for surface mounting. Its efficient buck topology and synchronous rectification contribute to high power conversion efficiency. The LM3370TL-3022-NOPB is commonly employed in portable electronics, industrial automation, and power management applications requiring compact and efficient voltage regulation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFBGA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Down |
| Current - Output | 600mA |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 2MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 20-DSBGA |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | 1.2V, 1.85V |
