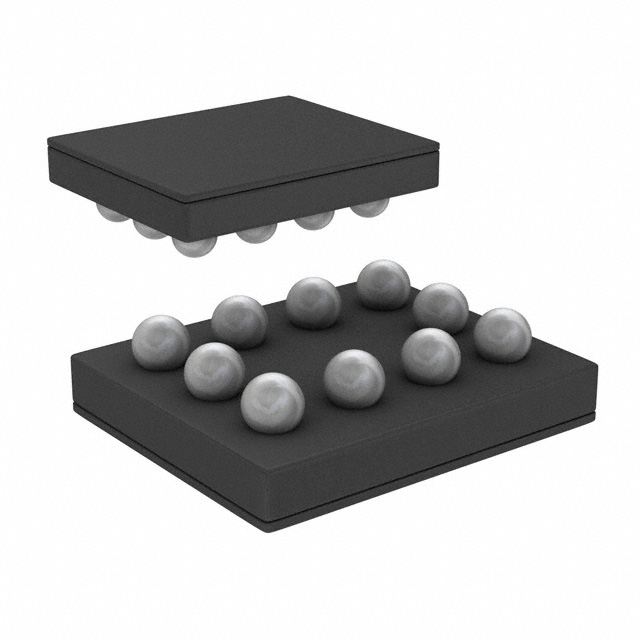

LM3200TLX/NOPB
IC REG BUCK ADJ 500MA 10DSBGAManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Texas Instruments LM3200TLX-NOPB is a high-frequency buck switching regulator designed for efficient step-down voltage conversion. This device offers an adjustable output voltage with a minimum of 0.8V and a maximum of 3.6V, capable of delivering up to 500mA of output current. Featuring a switching frequency of 2MHz, it enables the use of smaller external components, contributing to a compact 10-DSBGA package suitable for surface mounting. The LM3200TLX-NOPB incorporates synchronous rectification for enhanced efficiency. Operating within an input voltage range of 2.7V to 5.5V, this regulator is well-suited for applications in portable electronics and power management systems. It operates within an ambient temperature range of -25°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFBGA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 500mA |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 2MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 10-DSBGA |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 3.6V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | 0.8V |
